Manufacturer: Manncorp - USA

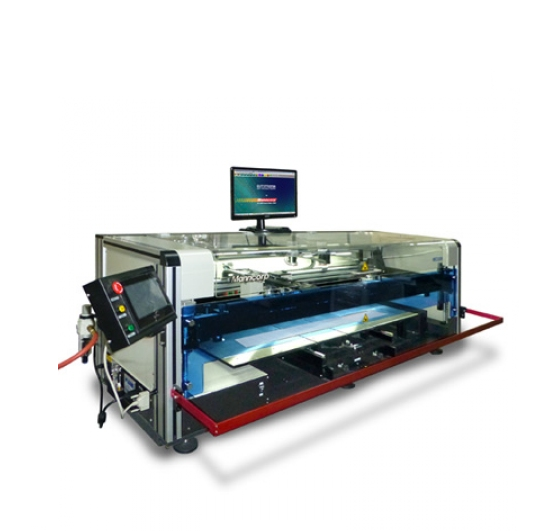

Model: MC1200
Origin: China
Warranty: 12 months
Stencil Frame Size: 350 x 350mm to 1480 x 470mm
Max. Printing Area: 1200mm x 400mm
Max. Board Size: 1250mm x 410mm
X- and Y-Axes Range: +/- 13 mm
Theta Rotation: ± 3.5°
Underside Clearance: 25 mm
Z-axis Range: 0 - 35 mm
Registration Repeatability: ± 0.01 mm
Power Requirements: 220VAC 50-60 Hz
Overall Dimensions (L x W x H):1719mm x 1006mm x 851mm
Machine Weight: 289kg
