Manufacturer: Manncorp - US

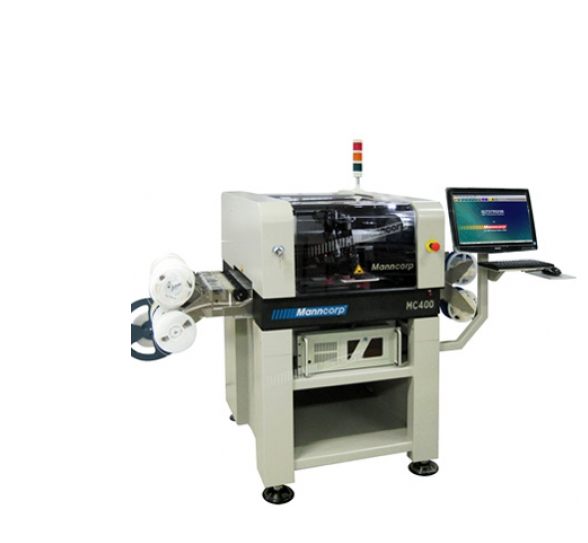

Model: MC-400
Origin: China
Warranty: 12 months
Placement Specifications
Number of Placement Heads:1
Placement Rate (IPC-9850)*:2,500 CPH
Placement Rate (Max.):3,000 CPH
Placement Accuracy:±0.05 (0.002")
Minimum Component Size:0201
Maximum Component Size:100 mm x 150 mm (3.94" x 5.9")
Minimum Component Lead Pitch:15 mil
BGA/CSP Placement Capability:Yes - Standard
Alignment Method:Full-Vision Alignment System
Pick Up Specifications
Tool Changer:Included
Number of Tools:15
Accepts Additional Tool Changers:Yes
Integral Vacuum:Yes
PCB Specifications
PCB Loading Method:Manual
Max. Placement Area:415 mm x 320 mm (16.3" x 12.5")
Fiducial Recognition/ Coordinate Correction:Yes
Bad Mark Detection:Yes
Feeder Capacity
Maximum Number of Feeder Ports:64
Maximum Number of Waffle Trays:3 (Waffle tray reduce placement area)
Programming
Operating System:Windows® Based
PC, Keyboard, Mouse:Yes
MonitorFlat LCD
Teaching Camera:Yes
Numeric Data Entry:Yes
CAD Download:Yes
Step and Repeat for Matrix Boards:Yes
Bar Code Reader for Feeders & Packaging:Yes
MIS and Optimization Functions:Yes
Off-Line Programming:Yes
Dispenser Specifications
Dispensing Head:Optional
Dispense Method:Time/Pressure
Dot Size / Placement Speed:Down to 0.5 mm / Up to 6,000 dots./hr
Mechanical Specifications
X-Y Axis Drive Mechanism:Belt
X-Y Axis Drive Motors:AC Servo
X-Y Axis Encoding:Linear
X-Y Axis Resolution:0.005 mm (0.0002")
X-Y Axis Repeatability:±0.01 (10 µm)
Z Axis Drive Motor:DC Servo
Z Axis Encoding:Rotary
Z Axis Resolution:0.01 mm (0.0004")
Θ Axis Drive Motor:DC Servo
Θ Axis Encoding:Rotary
Θ Axis Resolution:0.045°
Θ Axis Range of Motion:0.09˚/step°
Physical Specifications
Overall Dimensions(Approx. L x W x H):952 mm L x 977.9 mm W x 1447.8 mm H (37 1/2" x 38 1/2" x 57")
Approximate Net Weight:408 Kg (900 lbs.) With Stand
Facility Requirements
Standard Voltage:220 VAC, 50/60 Hz
Air Pressure:75 psi, 5 bar
Remote Diagnostics:Ethernet
Warranty (Major Components):1 Year
