Manufacturer: Manncorp - USA

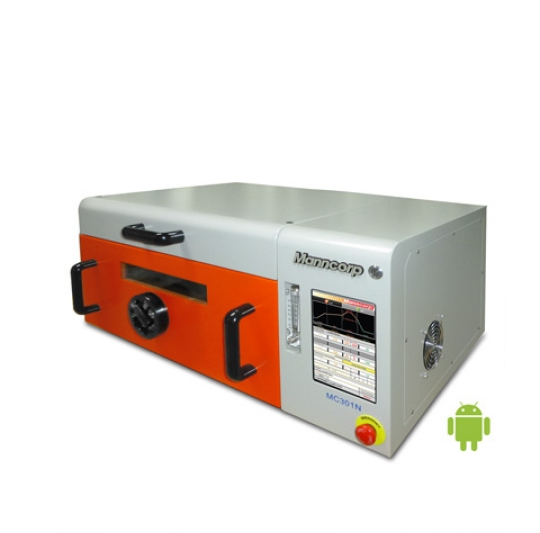

Model: MC-301N
Origin: China
Warranty: 12 months
Applicable Solder Types:Lead-Free or SnPb
Heating Method:IR & Forced Hot Air Convection
User Interface:Android Software Platform; Ultra High Resolution Touchscreen; Integrated WiFi & Networking
Effective Soldering Area:9.84” x 7.87” (250 mm x 200 mm)
Heating Chamber Size:13.78" x 9.84" (350 x 250 mm)
Temperature Range:Ambient - 310°C
Temperature Precision:±2 °C
Temperature Control Method:PID Control; SSR Contactless Switch Circuit
Warm-up Time:approx. 2.5 min.
Power:3.6 KW (avg.); 6.3 KW (max.)
Voltage:220 V, Single Phase, 50/60 Hz
Exhaust Requirement:6.3 L/Min., .22 CFM
Exhaust Temperature (approx.):90°C
Dimensions:27.2" L x 18.9" W x 11" H(690 mm L x 480 mm W x 280 mm H)
Weight:approx. 208 lbs. (95 Kg)
