Manufacturer: Manncorp - USA

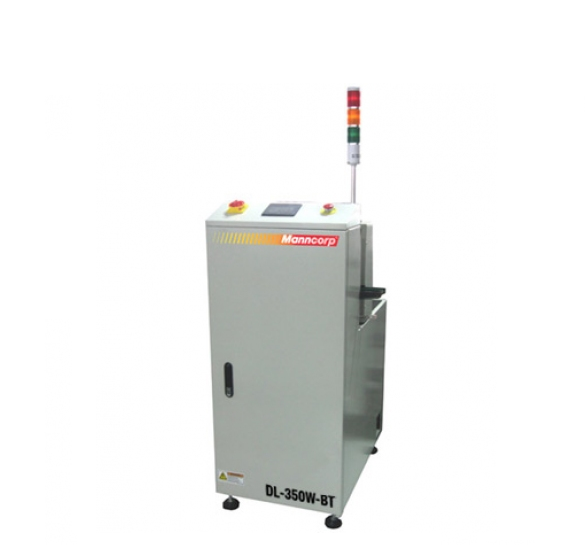

Model: DL-350W-BT
Origin: China
Warranty: 12 months
PCB Size:50 mm L x 50 mm W to 400 mm L x 350 mm W (1.97" L x 1.97" W to 15.75" L x 13.78" W)
PCB Stack Capacity:400 pcs. (0.6 mm thickness) or 200 mm (7.87") stack height
PCB Thickness:0.4 mm min. (0.016" min.); 2.5 mm max. (0.098" max.)
Conveyor Direction:Left to right (standard) or right to left (optional) operation
Conveyor:3 mm Edge Belt
Air Supply Pressure:5-6 Kg/cm2 (70-85 psi)
Air Consumption:30 l/min (1 CFM)
Voltage:110 VAC, 50/60 Hz
Power:150 VA max.
Machine Dimensions:500 mm L x 800 mm W x 1160 mm H (20" L x 31.5" W x 46" H)
Net Weight:170 Kg (375 lbs.)
Shipping Weight:220 Kg (485 lbs.)
