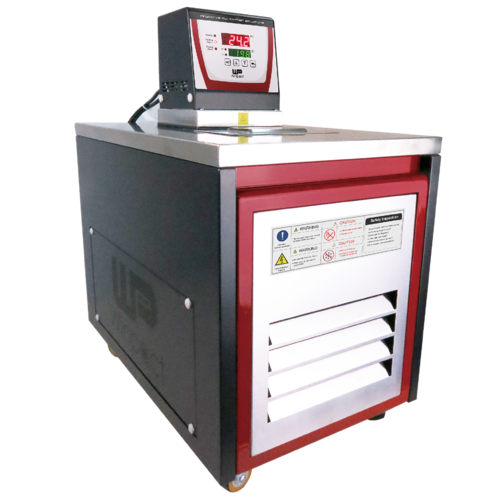

Major Science WCC-101 Winpact Chiller (220V; 50Hz, 8A)

Display:LED Display

Temperature control range:0oC to +100oC

Temperature stability:± 0.5oC at 20oC

Temperature accuracy:± 0.5oC at 20oC

Controller:PID control, PT100 sensor

Setting / display resolution:± 0.1°C

Cooling capacity (Medium Ethanol):1900 BTU/h @ 0°C

Pump capacity flow rate (L/min):5.5 L/min

Hydraulic head:2.5 meter

Pump capacity flow pressure (bar):0.19 bar

Pump connections:1/4” silicone tubing

Barbed fittings diameter (inner dia. / mm):6.35 mm or 1/4”

Bath capacity:10 L

Refrigerant:CFC free refrigerants-R134a

Operating temperature:+20°C~+40°C

Operating humidity:Max.80%

Rated voltage:220V; 50Hz, 8A

Chamber material:304 stainless steel

Bath inner dimension: (W x L x H) 9.25"x11.61"x5.90" (235x295x150 mm)

External material:Powder coating

Compressor:1/4 HP

Dimension :(W x L x H) 13.39"x22.04"x26.38" (340x560x670 mm)

Weight:Approx. 110.2 lb (50 kg)

Safety device:■ Self-diagnosed abnormality display

■ Electronic overheating thermal fuse protection in

increments of 0.1oC

■ Delayed resume compressor protection

Circulation volume:Cycles up to 5.5 L/min cooling system with delayed resume protection after power outage

Circulation type:Jet stream flow forced circulation, can be accessed through the outer loop

Power:1000W

The Winpact Chiller series is Major Science’s newest addition to the bioprocessing technology portfolio to provide precise temperature control and excellent cooling performance for your fermentation needs and beyond. The recirculating chillers are compactly designed and require very little space; the built-on wheels offer an added bonus of mobility to any space-conscious labs. With a low procurement cost, it is your best option to stray away from costly tap water and is the perfect alternative for basic cooling needs.
