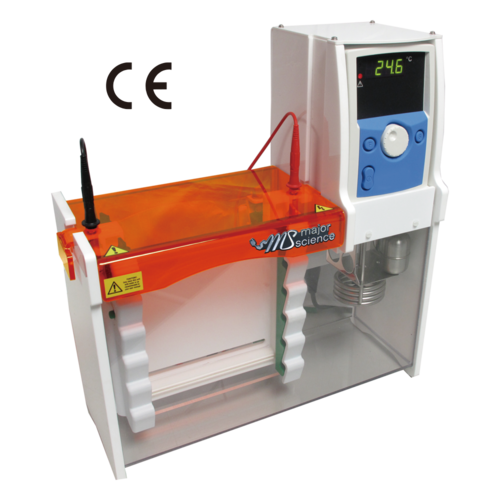

Major Science MV20-WAVE-DGGE Denaturing Gradient Electrophoresis

Max. Number Of Gels: 2 per run

Plate Dimension (WxH): Approx. 7.9"x7.9" (200x200mm)

Active Gel Dimension (WxH): Approx. 6.3"x6.9" (160x175mm)

Thicknesses: 0.75, 1, 1.5 and 2mm

Max. Sample Capacity: 96 samples; 48 per gel

Standard Combs: 2x1mm 24-sample

Available Combs: 1, 5, 10, 18 MC, 24, 36 MC, 48; as per MV20WAVE and Maxi units

Max. Buffer Volume: 2.25gal (8.5L)

Dimension (WxLxH) : Approx. 15.9"x6.7"x1.7" (405x170x440mm)

Weight: Approx. 17.6lb (8kg)

Temperature Control Unit:

Temperature Control: PID

Operating Temperature Range: Ambient - 100ºC

Working Temperature Range (DGGE): 45-70ºC

Buffer Recirculation Mechanism: Stirring

Temperature Uniformity / Stability At 37ºC: ±0.05 / 0.02ºC

Setting / Display Resolution: 0.1ºC

Safety: Fluid-level float switch; isolated; IEC 1010/CE

Stored Temperature Values: 4

Heater Power At 230V/110VAC: 1.4/1.3kW

Electrical Power At 230V/100VAC: 1.5/1.4kW (50-60Hz)

Recommended Power Supply MP-510:

Rated Voltage: 500V

Current: 800mA / 500ml

Power: 300W / 150W

Gradient Mixer:

Total Volume: 100ml

Volume Of Reservoir & Mixing Chambers: 50ml

Internal Diameter Of Outlet Port: 2mm
