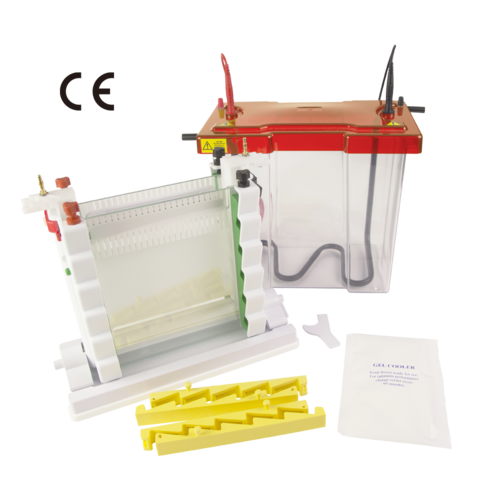

Major Science MV-20WAVESYS Maxi WAVE Vertical Electrophoresis System

Dimension (WxLxH): Approx. 11.8"x7.1"x10.9" (300x180x270mm)

Plate Dimension (WxL): Approx. 7.9"x7.9"x0.2" (200x200x4mm)

Gel Dimension (WxL): Approx. 6.3"x6.9" (160x175mm)

Maximum Sample: 192 samples, 48 samples per gel

Total Buffer Volume: 4.8~5.3L

Total Volume Inner Buffer Chamber: 640ml

Cooling Method: Cooling coil

Dummy Plate And Casting Base: Yes

Construction: Injection molded construction;  Durable, leak proof environment for complete safety and long life

Electrical Safety: Lid can only be fastened in one way;On removal, power is disconnected from buffer chamber

Rapid Casting Gel: Use casting dams
