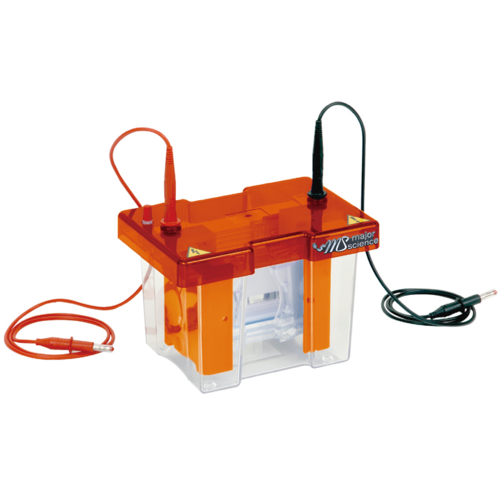

Major Science MV-10DSYS Mini Vertical Gel Electrophoresis Apparatus (190x130x150mm)

Dimension (WxLxH): Approx. 7.5"x5.1"x5.9" (190x130x150mm)

Plate Dimension (WxL): Approx. 3.9" 3.9" (100x100mm)

Gel Dimension (WxL): Approx. 3.4"x3.2" (85x80mm)

Maximum Sample: 80 samples, 20 samples per gel

Buffer Volume:0.07gal -0.32gal (250 -1200ml)

Ice Cooling Pack: Yes

Dummy Plate And Casting Base: Yes

Construction: Injection molded construction

Durable, leak proof environment for complete safety and long life

Electrical Safety: Lid can be fastened in only one way

Upon lid removal, power is disconnected from buffer chamber

Rapid Casting Gel: Use gel maker stand

Mini Vertical is an injection molded vertical elctrophoresis system providing a leak-proof environment and safe operation. Its vertical tank is designed for blotting compatibly. The dual 100x100mm plate is the most popular application and it is capable of handling up to 4 plates. In addition, packages with Mini 300V Power supply is ideally offered to individuals in the labratory at a competitive and acceptable pricing to avoid time wating for basic instruments and to accelerate experimental progress. Simple rapid and leak-proof gel casting.
