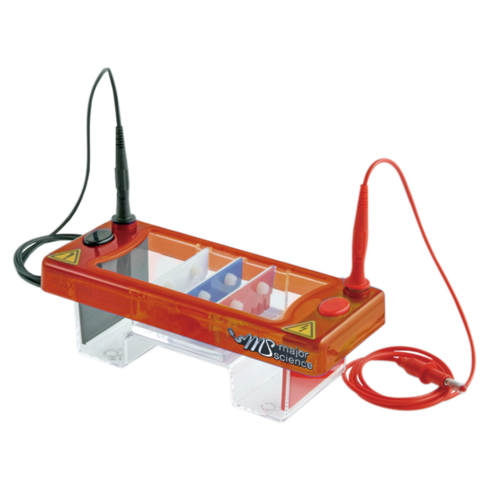

Major Science ME7-7-10 Midi plus Horizontal Electrophoresis System (210x90x90mm, plus)

Dimension (WxLxH): 8.3"x3.5"x3.5" (210x90x90mm)

Gel Dimension (WxL):

• 2.8"x2.8" (70x70mm)

• 2.8"x3.9" (70x100mm)

Maximum Sample:

• 32 for 2.8"x2.8" (70x70mm) Tray(2x16 sample combs)

• 64 for 2.8"x3.9" (70x100mm)Tray(4x16 sample combs)

Buffer Volume: 0.06gal (225ml)

Construction: Injection molded construction, Durable, leak-proof environment for complete safety and long life

Cassette Type Electrode: Inexpensive, easy to replace

Made of 99.99% corrosion resistant pure platinum

Electrical Safety: Lid can only be fastened in one way

Upon lid removal, power is disconnected from buffer chamber

Rapid Casting Gel: use casting dams

Our Midi series has been designed for routine horizontal gel electrophoresis with wide degrees of versatility. All of our gel tanks are made from injection molded construction for durable and leak proof environment. Varieties of special combs are available to maximize your sample size.

Midi plus includes the 70x70 and 70x100mm gel trays for a maximum of 64 samples, designed for low to medium numbers ofsamples.
