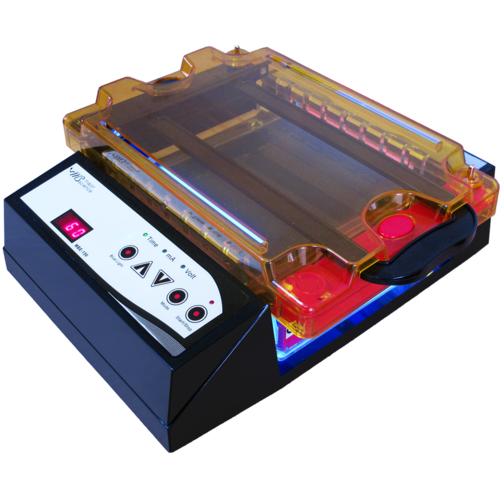

Major Science MBE-150-PLUS SafeBlue Illuminator/ Electrophoresis System (10-150V, 10-300mA)

MBE-150

Output Voltage / Inc.:10-150V / 1V

Output Current / Inc.:10-300mA / 1mA

Max. Power:30W

Operating Mode:Constant Voltage or Current

Timer:999 (min) with alarm / Continuous

Safety Device:No load detection

Crossover:Yes

Blue Light Wavelength:470nm

Operating Temperature:Ambient to 40°C

Dimension (WxLxH):Approx. 11.5"x7.9"x3.2" (293x200x80mm)

Weight:Approx. 2.4lb (1.1kg)

Material:Polycarbonate housing and aluminum base plate

Power AdaptorInput: 100-240VAC, 50/60Hz, 1.4A

Output: 15VDC, 4.0A, 60W max.

The SafeBlue Electrophoresis System also uses blue LED light to allow for immediate visualization of DNA/RNA bands while running agarose electrophoresis gel. The complete system comes with three different sizes of gel trays for your convenience of use, 150x70mm, 150x100mm and 150x150mm. The system is RoHS and CE compliant for environmental and safety concerns. Different accessories are also available for user to select.
