Major Science FS-V-SA05P Winpact Solid State Fermentation System (solid state, 0.1 – 60 rpm)

Control Unit

Control Panel:10.4” color touch-screen Interface, (Resolution: 800 x 600 pixels)

Communication Port:Remote control through Ethernet, Analog AUX port for system extension

Storage Program:Up to 59,994 programs for different kinds of condition.

Data Internal Storage:Up to 100 data files.

Data External Storage Interface:USB port

Cabinet Material:Front panel: ABS / Housing: Painted iron

Dimension:

Overall Diameter 350mm;

Overall Height with Condenser 683 mm;

Overall Height without Condenser 448 mm

Dimension (with vessel holder) 430mm (L) x 730mm (W) x 780 mm (H)

Rated Voltage:110V~/ 220V~ ; 50/60 Hz

Aeration:Inlet Gas Flow-meter 0, 1 – 10LPM

Temperature

Heating:Thermostat system: Built-in heat exchanger, 550W heater/water circulation pump

Cooling:Automatic cooling water valve

Range:5°C (41°F ) above coolant up to 60°C (140°F )

Resolution:0.1°C

Control Mode:Manual or programmable 15-step PID control.

Agitation

Drive:Removable top brushless motor

Speed Range:0, 1 – 60 rpm

Resolution:1rpm

Control Mode:Manual or programmable 15-step PID control.

Impeller:

1. Broken type (FS-A-IM305)

2. Anchor type (FS-A-IM408)

3. Spiral type (FS-A-IM507)

(Select one from the above type, and only anchor impeller can be used with pH and DO probes)

Vessel Swing

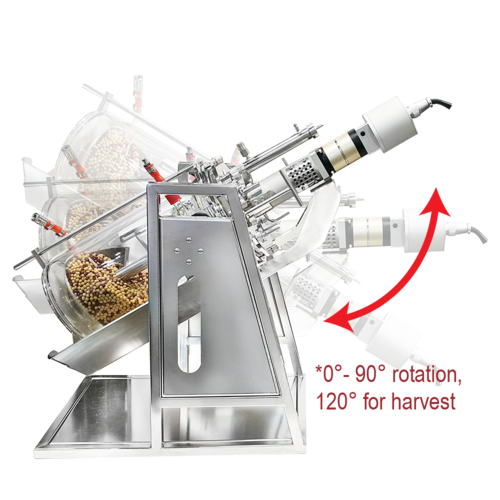

Angle Range:Normal operation: 0°~90°, adjustable time interval

Harvest mode: 0°/ 120°

Control Mode:Programmable control

Solid state fermentation (SSF) can be used for enzyme, antibiotics, biofuel, and organic acid production in the food, pharmaceutical, cosmetic, industries, etc. One of the features for Solid state bioreactors is to create low water level cultivating conditions for fungus, mold, filamentous fungi, and some bacteria growth. Winpact Solid State Fermentation system is designed for the laboratory scale research to get excellent results. It is featured with a 10.4" color touch screen, user-friendly interface and 4 built-in peristaltic pumps on the Linux based operation system. An automatic vessel angle control mechanism provides an outstanding mixing efficiency for solid state material research. This system is suitable for both aerobic and anaerobic fermentation with three kinds of impellers available (Broken, Anchor and Spiral type).
