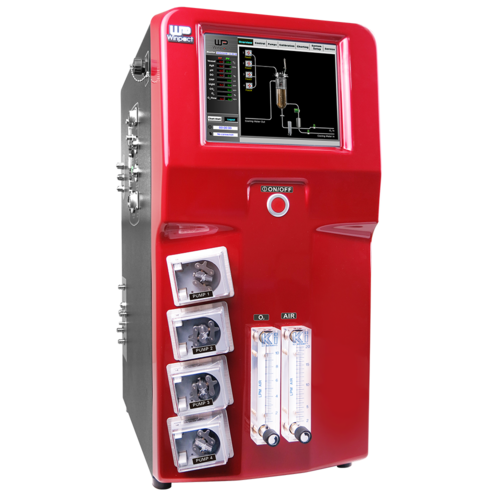

Major Science FS-07 Winpact Evo Fermentation System / Fermenter, FS-07 series (500ml - 20L)

Utility Requirement

Power source100-120V / 210-230V, 50-60Hz with electrical safety cutoff switch

Water source0.4-1 bar (5.8-14.5 psi); water supplied to fermentors should be at least 15°C below the set operating temperature

Air source0.5-2 bar, must be dry, oil-free and filtered

SterilizationAutoclave; size of the autoclave's inner chamber must be able to accomodate vessel with condenser attached

Control unit

Control panel10.4” color touch-screen Interface (Resolution: 800 x 600 pixels)

Communication portRemote software control through Ethernet, up to 16 systems per PC

Data export through USB port

Analog AUX port for system extension

Program storageUp to 59,994 programs for different kinds of condition

Log data storageUp to 100 process monitoring data files

Cabinet materialABS front panel and painted iron housing

DimensionFootprint: W x L = 15.75" x 23.62" (400 mm x 600 mm); Height: 29.14" (740 mm)

Rated voltage110V~/220V~; 50/60 Hz, 10A

WeightApprox. 88.18 lb (40 kg)

Aeration

Inlet gas flow-meter0, 0.4-5 LPM (0.5, 1 L); 0, 1-10 LPM (3, 5 L);

0, 2-20 LPM (10 L); 0, 4-50 LPM (15, 20 L)

SpargerL-shape (500ml, 1L); Ring sparger (3L and above);

Micro-sparger (C type vessels);Center-located sparger (solid state)

Baffle316L stainless steel baffles

0.5-3L vessel: fixed, unmovable

5L and above vessel: removable

Temperature

Heating:

1. Thermostat system: built-in heat exchanger (550W heater, water circulation pump)

2. Dry heating system (heating blanket or heating base unit)

CoolingBuilt-in water module and external water circulator (optional)

Range- FS-V-A/ B / SA05P series: 5℃ (41℉) above coolant up to 60℃ (140℉)

- FS-V-C series (Double Jacketed): 5℃ (41℉) above coolant up to 60℃ (140℉)

- FS-V-C series (Single Wall): without temp control

- FS-V-D series : 5℃ (41℉) above coolant up to 90℃ (194℉)

ProbePlatinum RTD probe (PT-100), non autoclavable

Control modeManual or programmable 15-step PID control

Agitation

DriveRemovable top brushless motor

(M3 for 0.5 L, 1 L; M2 for 3~20 L; M4 for solid state)

Speed rangea. For Pitched blade impeller: 30-300 rpm

b. For Rushton impeller: 30-1800 rpm(0.5, 1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L);30-700 rpm (15, 20L)

c. For Broken type/Spiral type/Anchor type impellers (only for FS-V-SA05 vessel): 1 – 60 rpm**

Resolution1 rpm increment

Impeller2 impellers for 0.5 L &1 L vessel and 0.5-5 L Double Jacketed Vessel

3 impellers for 3 L vessel and above; for 10 L Double Jacketed Vessel

Note: customized impellers are available upon ordering

Control modeManual or programmable 15-step PID control

pH

Range0 -14 (2-12 for maximum precision)

Resolution0.01 pH

ProbeGel-filled electrode, autoclavable

Control modeManual/programmable 15-step PID control with adjustable deadband;

pH Stat with smart feeding technology

DO

Range0-200%, Control range: 0-100%, adjustable

Resolution0.1%

ProbePolarographic DO sensor; autoclavable

Control mode2-stage DO cascade response

a. Increase or decrease agitation speed

b. Supply external oxygen source (oxygen enrichment module required, optional device)

c. Adjust DO level using gas mixing control (gas mixing station module required, optional device)

Substrate feeding strategy; DO Stat with smart feeding technology

ORP (optional)

Measurement range± 2000 mV

Resolution1 mV

ProbeGel-filled electrode: autoclavable

Foam / levelProbe316L stainless steel protector with insulated PTFE tube; autoclavable, adjustable sensitivity control

Control modeFoam: on/off switch

Level: on/off switch control with wet/dry probe set up

Peristaltic pumpPump number4 built-in Watson Marlow pumps;

2 external pumps expandable:

• 1 external pump: MU-D series required (optional)

• 1 external pump: 4-20mA or DC 0-10V analog input

Motor typePrecise stepping motor; minimum speed is 1 rpm

Speed range0, 1 - 65 rpm

Resolution1 rpm

Control modeManual or programmable 15-step feeding control; pump can be assigned for acid, base,antifoam and and/or substrate; pump can calculate flow rate and total volume

Exhaust

Device type:316L stainless steel condenser
