Major Science DI-01 Digimage System (110/220V~, 50/60Hz, 1.6A)

DI-01 Spec.

Multi-Power SourceFor camera, Inner light lamp, TFT monitor

Inner White Light:2 white LED, 3 watt/LED

Safety Device:Safety door switch

Dimension (WxLxH):11.4"x13.3"x15.9" (290x339x403mm)

Material:Painted metal

Rated Voltage:110/220V~, 50/60Hz, 1.6A

Weight:Approx. 12.9lb (5.8kg)

Camera Adapter:Aluminum

DI Darkroom

Dimension (WxLxH):11.4"x13.3"x15.7" (290x339x398mm)

Weight:Approx. 11.9lb (5.4kg)

Camera Spec.

Camera Type: 24.1MP digital camera, Wi-Fi function

Effective Pixels:Approx. 24.1 megapixels (Total Pixels Approx. 25.8 megapixels)

Sensor:22.3 x 14.9mm CMOS sensor

Max. Aperture:f/3.5-6.3 (IS STM Lens)

Shutter Speed:30 - 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)

Storage Media: SD memory card, Wi-Fi to PC, Smartphone or Tablet

Computer Interface:Hi Speed USB (Micro), HDMI(Micro), WiFi connection

Video Out: Full HD / HD / MP4 / 4K

Image Resolution:(3:2)6000x4000

Lens35mm film equivalent to 1.6x the focal length

File Format:Designed rule for Camera File system 2.0

Data Type:

• JPEG, RAW(CR3 14 bit)

• RAW+JPEG, simultaneous recording possible

Monitor

Type8" TFT LCD Monitor

Resolution:1024x600 pixels

Brightness:300cd / m2

Constant Ratio: 700:1

Display Mode:NTSC / PAL auto switch

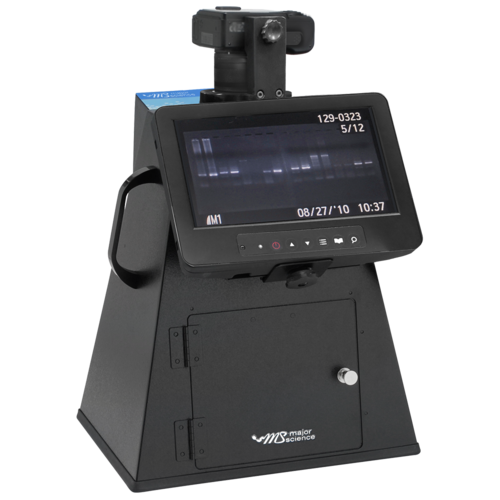

The Digimage System is a simple, compact gel documentation system with a rear digital control panel. It contains a digital camera with a superb resolution of 24.1 megapixels. The image is viewed from a large 8” TFT colorful screen with monitor purpose only, for a lab with limited space and low budget requirements, the Digimage System is definitely your top choice since it can be operated without computer. A variety of images can be captured including: agarose and other fluorescent gels, colorimetric gels, auto radiography film, and blotting membranes. A safety switch is equipped to turn off the UV Transilluminator automatically when the front door is opened. Files can be saved in a variety of formats, including RAW format, for transfer to a computer for storage and analysis.
