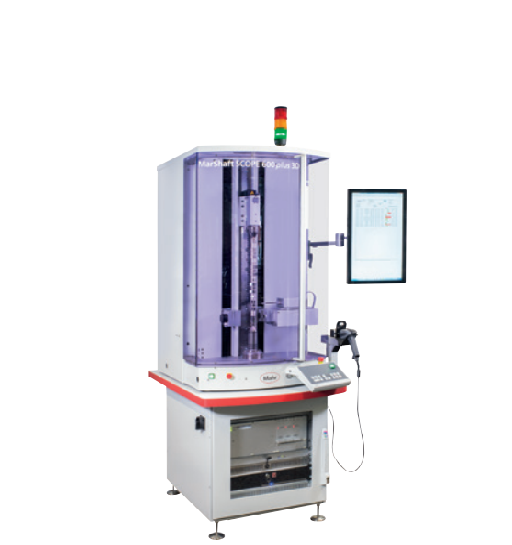

Mahr SCOPE 600 plus 3D Optical Shaft Measuring System (Z:600mm,X:120mm)
ManufacturerMahr(View more products from this manufacturer)
ModelSCOPE 600 plus 3D
OriginGermany
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measuring range length (Z) (mm):600
Measuring range diameter (X) (mm):120
Length/diameter resolution (mm):0.01 to 0.0001
Angle resolution (°): 0.01 to 0.0001
Length error limit (Z) (µm): (2 + L/125) L in mm (at 20°C ± 1°C on reference standard)
Diameter error limit (X) (µm): (1.0 + L/125) L in mm (at 20°C ± 1°C on reference standard)
Lens: Telecentric precision lens
High-resolution CCD array
Drives: Servo motors
Workpiece weight (max.) (kg): 15
