Roundness deviation (µm+µm/mm measuring height)*: 0,015 + 0,0003
Axial runout deviation (µm+µm/mm measuring radius)*: 0,02 + 0,0001
Centering and tilting table: manual
Table diameter (mm): 160
Table load capacity, centered (N): 200
Speed (rpm) 50 Hz / 60 Hz: 0.2-15
Measuring path, motorized Z (mm): 250
Parallelism deviation Z-/C axis in tracing direction, measuring path (µm): 0.5
Measuring speed (mm/s), Z axis: 0.5-30
Positioning speed (mm/s), Z axis: 0,5-100
Positioning path (mm), X axis: 150, motorized
Positioning speed (mm/s), X axis: 0,5-30
* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.
OPTIONS:
• 22” touchscreen TFT monitor instead of the 24” standard TFT

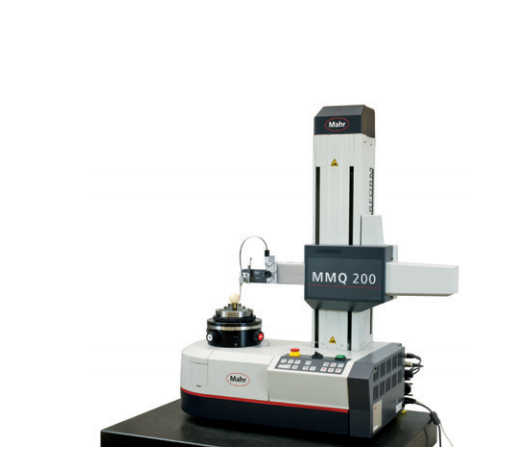

• Roughness measurement and evaluation with MMQ 200/T7W
• MarWin Software, diameter evaluation
• Various clamps
• Probe arms of various lengths and with various stylus ball geometries
• Various double probe arms
• Various calibration standards
