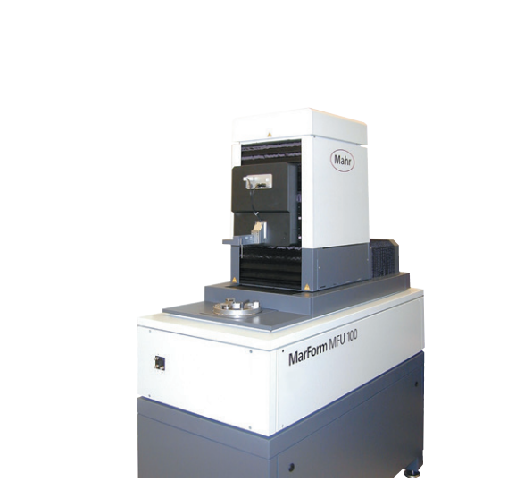

Mahr MFU 100 Reference Form Measuring Station (200N, 0.1-15rpm)

Roundness deviation (µm+µm/mm measuring height)*: 0,01 + 0,0002

Axial runout deviation (µm+µm/mm measuring radius)*: 0,02 + 0,0002

Centering and tilting table: automatic

Table diameter (mm): 180

Table load capacity, centered (N): 200

Speed (rpm) 50 Hz / 60 Hz: 0.1 - 15

Straightness deviation / 100 mm measuring path (µm), Z axis: 0.1

Straightness deviation / total measuring path (µm), Z axis: 0.3

Parallelism deviation Z-/C axis in tracing direction, measuring path (µm): 0.6

Measuring speed (mm/s), Z axis: 0.1-50

Positioning speed (mm/s), Z axis: 0.1-50

Straightness deviation / total measuring path (µm), X axis: 0.3

Perpendicularity X/C axis, measuring path (µm): 0.3

Positioning speed (mm/s), X axis: 0.1-50

Measuring speed (mm/s), X axis: 0.1-50
