Mahr 4474005 Self-Centering Dial Bore Gage (844N, 250 – 800mm/10 – 32”, 366mm)

Measuring the diameter, roundness and conical form of a bore as well as the distances of parallel plane surfaces

Product type: 844N

Measuring range: 250 – 800mm/10 – 32”

Design: Standard, moveable anvil carbide-tipped

Probe path: 2.6mm

Measuring depth: 366mm

Error limit Ge: 3µm

Repeatability fw: 1.5µm

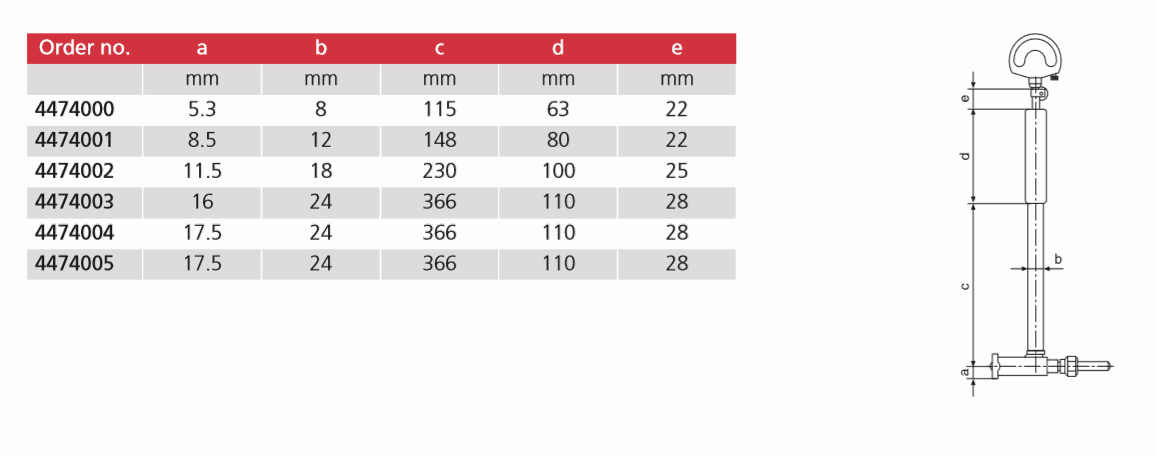

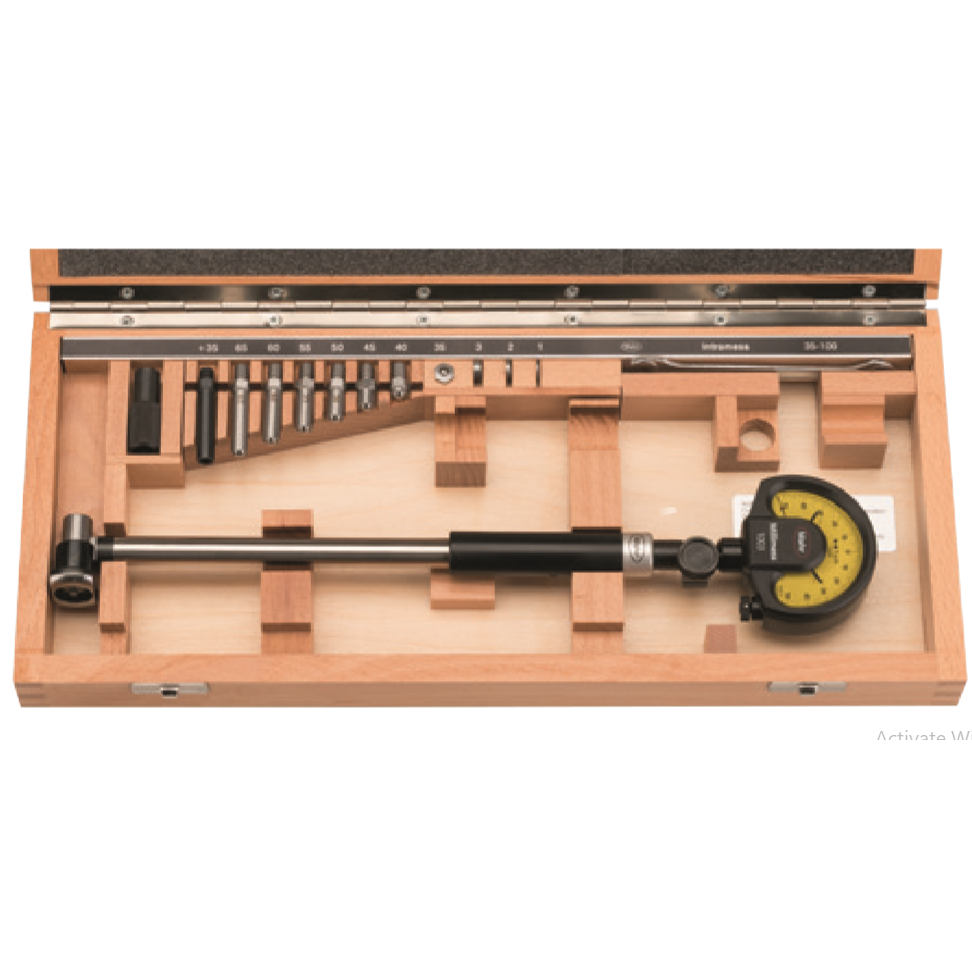

Package contains: measuring holder, measuring head, anvil spindle, wooden case, excludes indicator

Accessories:

• Millimess 0.5 µm, ± 25 µm, type 1002

• Millimess 1 µm, ± 50 µm, type 1003

• Millimess 5 µm, ± 130 µm, type 1004

• Digital indicator, 0.0005 mm, 12.5 mm, type 1087 BR

• Digital indicator, 0.0005 mm, 12.5 mm, type 1087 BRi

• Holder, measuring span 0 – 70 mm, type 420 h

• Holder, measuring span 0 – 120 mm, type 420 h

• Holder, measuring span 100 – 220 mm, type 420 h

• Holder, measuring span 100 – 420 mm , type420 h

• Holder, measuring span 400 – 820 mm, type 420 h

• Adjustment bridge (70 x 12 mm), for measuring range 18 – 250 mm (for 844 N), type 844 Neb

• Adjustment bridge (165 x 17 mm), for measuring range 18 – 400 mm (for 844 N), type 844 Neb

• Adjustment bridge (320 x 20 mm), for measuring range 18 – 800 mm (for 844 N), type 844 Neb

• Short holder (18 – 50 mm), type 844 Ngk

• Short holder (35 – 100 mm), type 844 Ngk

• Short holder (100 – 250 mm), type 844 Ngk

• Short holder (250 – 800 mm), type 844 Ngk

• Measuring depth extension (250 mm) for measuring range 35 – 100 mm, type 844 Nv

• Measuring depth extension (250 mm) for measuring range 100 – 250 mm, type 844 Nv

• Measuring depth extension (500 mm) for measuring range 100 – 250 mm, type 844 Nv

• Measuring depth extension (250 mm) for measuring range 250 – 800 mm, type 844 Nv

• Measuring depth extension (500 mm) for measuring range 250 – 800 mm, type 844 Nv

• Measuring depth extension (250 mm) for measuring range 18 – 50 mm, type 844 Nv

• Right angle attachment, bore depth 45mm, for measuring range 18 – 50 mm, type 844 Nw

• Right angle attachment, bore depth 55mm, for measuring range 35 – 100 mm , type844 Nw

• Right angle attachment, bore depth 70mm, for measuring range 100 – 250 mm , type844 Nw

• Base for mounting holder 420 h up to 420 mm, type 844 ef

• Measuring jaw (60 x 9.5 x 9 mm), for measuring range 18 – 800 mm (for 844 N), type 844 em

FEATURES

• Measuring head consists of a carbide tipped moving anvil and an interchangeable stationary anvil with a hardened steel ball

• Transmission lever system transfers movement of movable anvil to indicating instrument

• The broad centering bridge ensures automatic centering in the bore

• Resistant to temperature because the shank and transfer rod are made of heat resistant Invar steel

• Highly resistant to wear and tear because of carbide tipped  moving anvil

• Constant measuring force due to built-in spring, eliminating user influence

• Universally applicable and  extremely versatile - Each instrument spans a broad measuring range - Quick and easy to adjust to any size (within its range)

• Extensive modular system is composed of measuring head, holder, extensions, Right angle attachments and depth stops

• Invar steel has a particularly low expansion coefficient - instrument totally insensitive to any kind of heat (including user body heat and increased ambient temperature)
