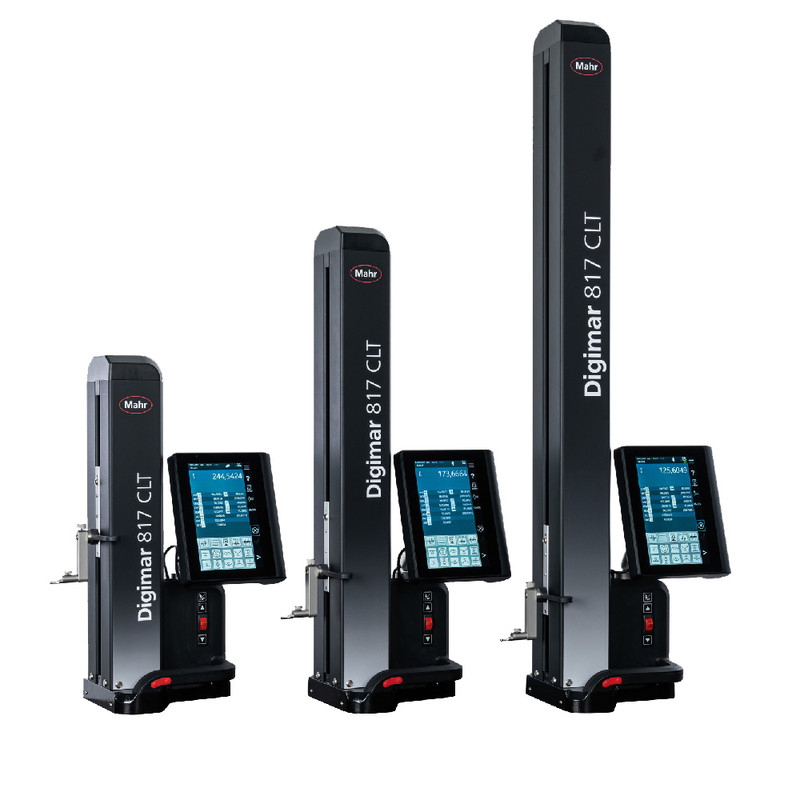

Mahr 4429600DKS Digamar Height Gage (0–350 mm)

Measuring range: 0 – 350 mm

Extended application range of: 170 mm

Extended application range up to: 520 mm

Resolution: 0.01 mm, 0.005 mm, 0.001 mm, 0.0005 mm, 0.0001 mm; .001”, .0005”, .0001”, .00005”, .00001”

Error limit: (1.8 + L/600) L in mm

Repeatability planes: 0.5 μm

Repeatability bores: 1 μm

Perpendicularity deviation: 5 μm

Operating time max.: 14 h

Measuring force: 1.0 +/- 0.2 N

Rel. humidity non-condensing: 65 %

Working temperature: 20 °C

Operating temperature: 10 – 40 °C

Product weight: 22 kg

Data interface: USB, Wireless

With calibration certificate from DAkkS
