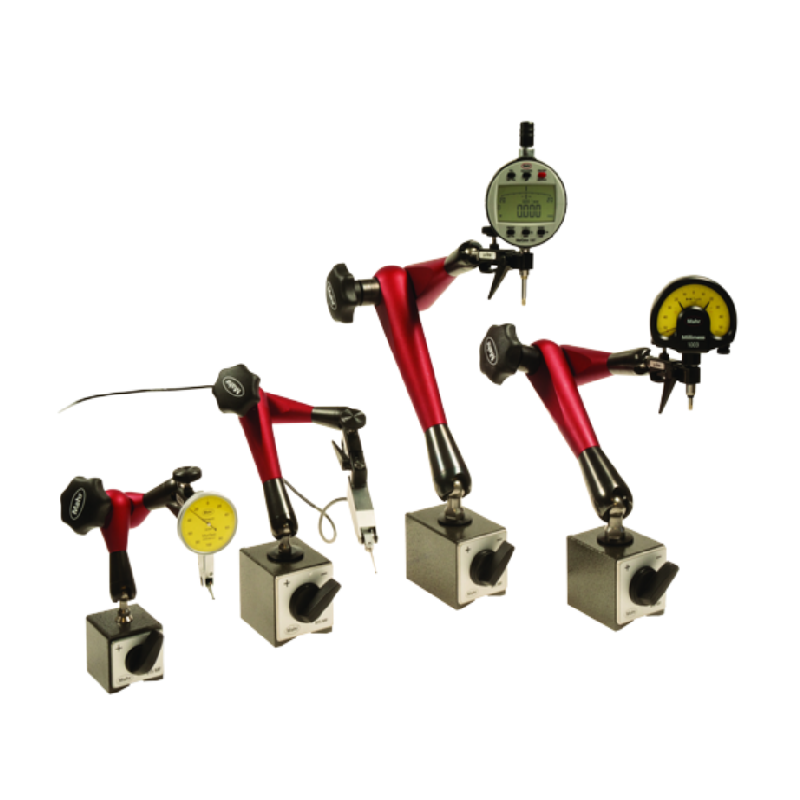

Mahr 4420385 Measuring Tripod With Magnetic Base (815 MF, 2mm)

Fine adjustment range: 2 mm

V-Block for shaft diameter: 6 - 120

Base surface: 40 x 40 x 40 mm

Adhesive force prism: 300 N

Total height: 228 mm

Projection (max.): 130 mm

Mounting hole: 8H7

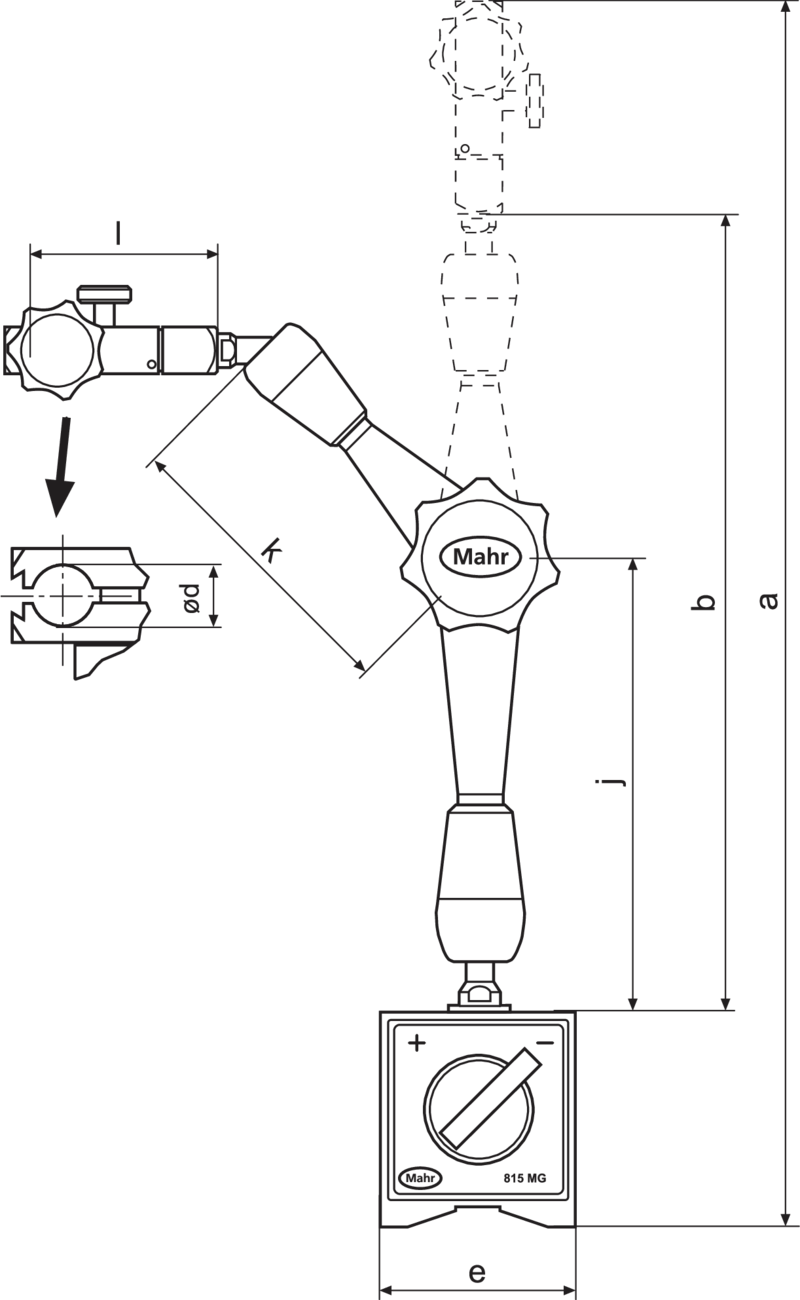

Dimensions: a 228 mm | b 130 mm | d 8 mm | j 71 mm | k 59 mm | l 49 mm |
