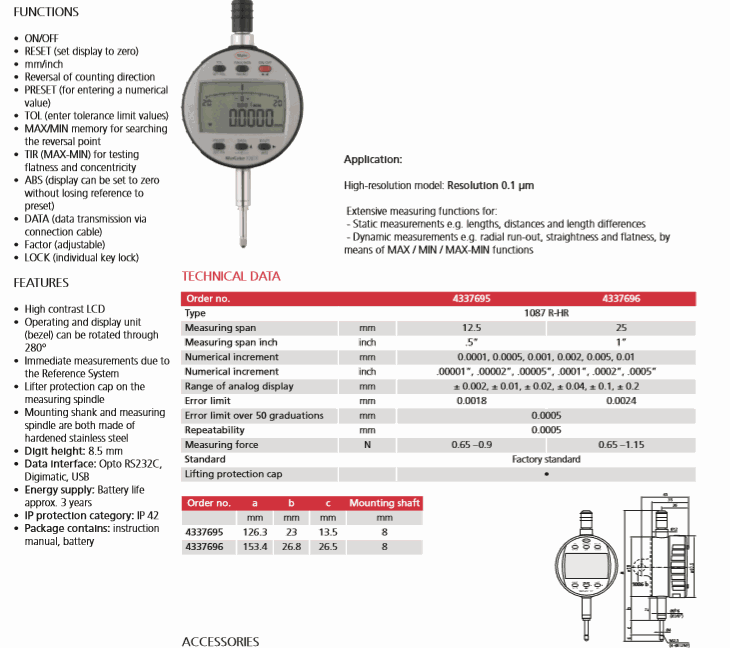

Mahr 4337695 Digital Indicator (1087 R-HR,12.5mm/.5”)

Product type: 1087 R-HR

Measuring span: 12.5mm/.5”

Numerical increment: 0.0001, 0.0005, 0.001, 0.002, 0.005, 0.01mm/.00001”, .00002”, .00005”, .0001”, .0002”, .0005”

Range of analog display: ± 0.002, ± 0.01, ± 0.02, ± 0.04, ± 0.1, ± 0.2mm

Error limit mm: 0.0018

Error limit over 50 graduations: 0.0005mm

Repeatability: 0.0005mm

Measuring force N: 0.65 – 0.9

Standard: Factory standard

Lifting protection cap: yes

Package contains: battery, instruction manual

Accessories:

• Adjustable back

• Screw back

• Rack back

• Adjustable back for 75B

• Post back

• 16 EXu Data connection cable USB (2 m), type 16 EXu

• Digimatic data cable (2 m), type 16 EWd

• Data connection cable RS232C (2 m), type 16 EXr

• Protective cap for 1075 R / 1086 R / 1087 R, type 1086 s

• Lug back, type 1086 b

• Cable release (12.5 + 25 mm), type 1085 a

• Pneumatic lifting (12.5 + 25 mm), type 1082 p

• Adapter bush (.375” / 8 mm), type 940

• Battery 3 V, type CR 2450
