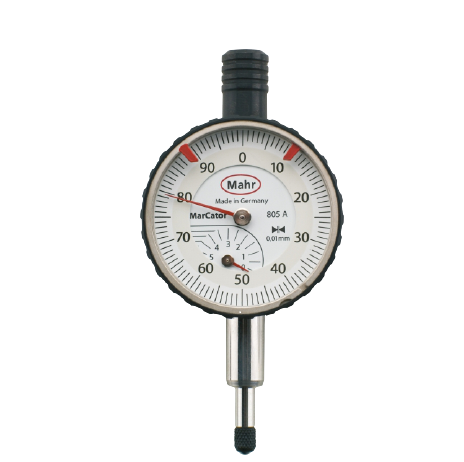

Mahr 4324060 Small Dial Indicator (805 A, 5mm)

Product type 805 A

Measuring span: 5mm

Graduation value: 0.01mm

Type of dial face: 0-100

Range per rev.: 1mm

Error limit: 12µm

Error limit, 1 revolution: 10µm

Error limit, 1/2 revolution: 9µm

Error limit, 1/10 revolution: 5µm

Repeatability fw: 3µm

Hysteresis fu: 3µm

Overtravel: 0.1mm

Measuring force incoming measuring pin N: 0.7 – 1.1

Standard: DIN 878

Shockproof movement: no

Lifting protection cap: yes

Dial color: White

Package contains: case

Accessories:

• Adapter bush (.375” / 8 mm), type 940

• Lug back, vertical, for 803, type 966

• Lug back, horizontal, for 803, type 967
