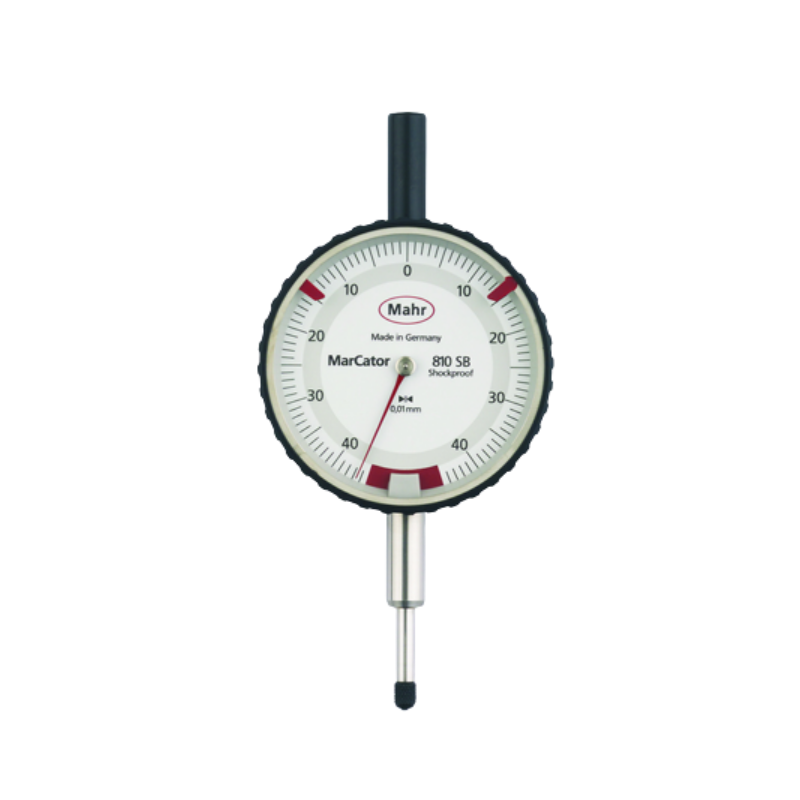

Mahr 4317000KAL Mechanical Dial Indicators (810 SB, 0.08mm)

Measuring span: 0.8 mm

Product type: 810 SB

Graduation value: 0.01mm

Standard: DIN 878

Type of dial face: 40-0-40

Range per rev.: 0.8 mm

Error limit measuring range: 7 µm

Error limit 1/2 revolution: 6 µm

Error limit 1/10 revolution: 5 µm

Measuring value hysteresis fu: 3 µm

Repeatability fw: 3 µm

Overtravel: 9 mm

Dial color: White

Dimensions: a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 120 mm | f 22 mm | g 15 mm
