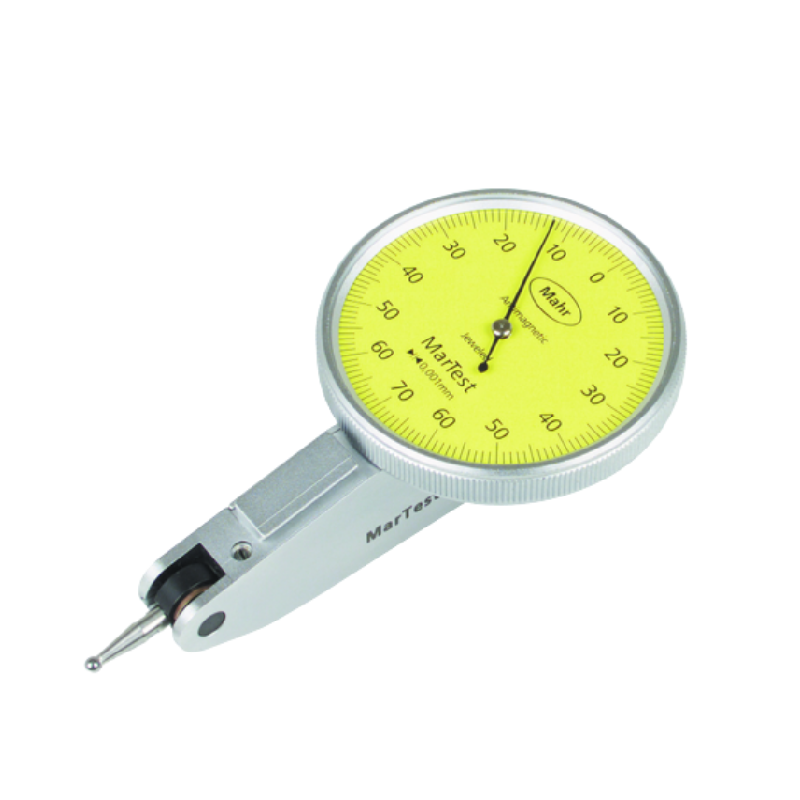

Mahr 4308220DKS Test Indicator (800SGE, ± 0.07mm)

Measuring range: ± 0.07mm

Product type: 800S SGE

Graduation value: 0.001 mm

Standard: Factory standard

Type of dial face: 70-0-70

Range per rev.: 0.14 mm

Span of error fe: 3 µm

Total span of error fges: 4 µm

Measuring value hysteresis fu: 2 µm

Partial measuring range ft: 2 µm

Repeatability fw: 1.5 µm

Measuring force: 0.2 N

Scale diameter: 38 mm

Dial color: Yellow

Dimensions: a 40.5 mm | c 8.3 mm | d 12.5 mm | e 70 mm | f 94 mm
