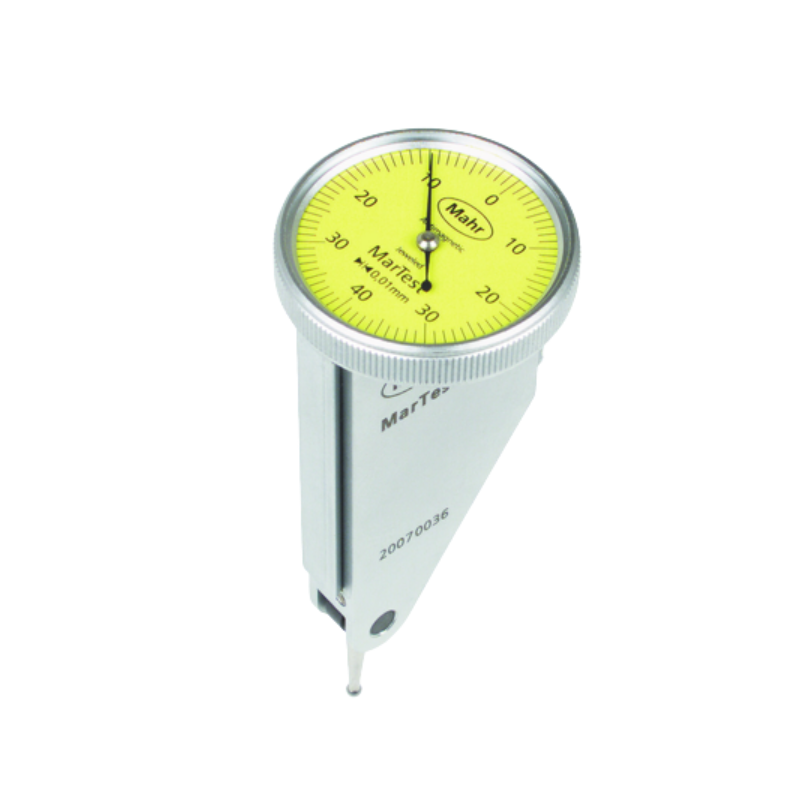

Mahr 4302200KAL Test Indicator (800V, ± 0.4mm)
ManufacturerMahr(View more products from this manufacturer)
Model4302200KAL
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Measuring range: ± 0.4mm
Product type: 800 V
Graduation value: 0.01 mm
Standard: DIN 2270
Type of dial face: 40-0-40
Range per rev.: 0.8 mm
Span of error fe: 10 µm
Total span of error fges: 13 µm
Measuring value hysteresis fu: 3 µm
Partial measuring range ft: 5 µm
Repeatability fw: 3 µm
Measuring force: 0.2 N
Scale diameter: 28 mm
Dial color: Yellow

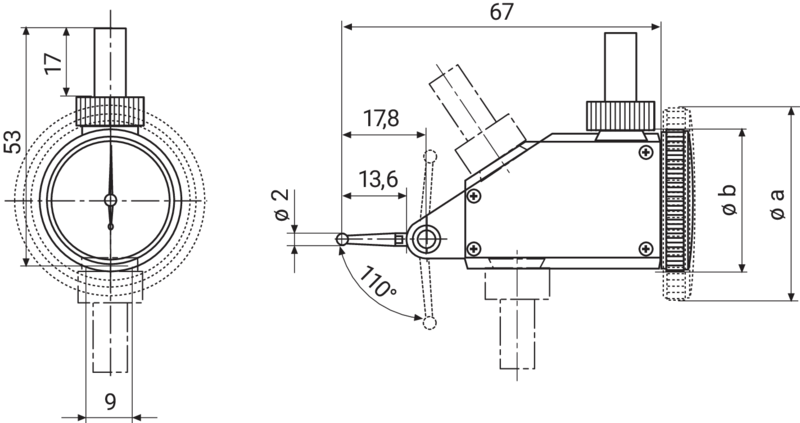

Dimensions: b 30 mm |
