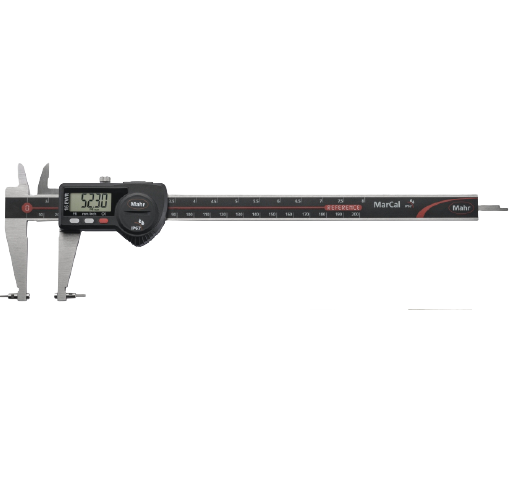

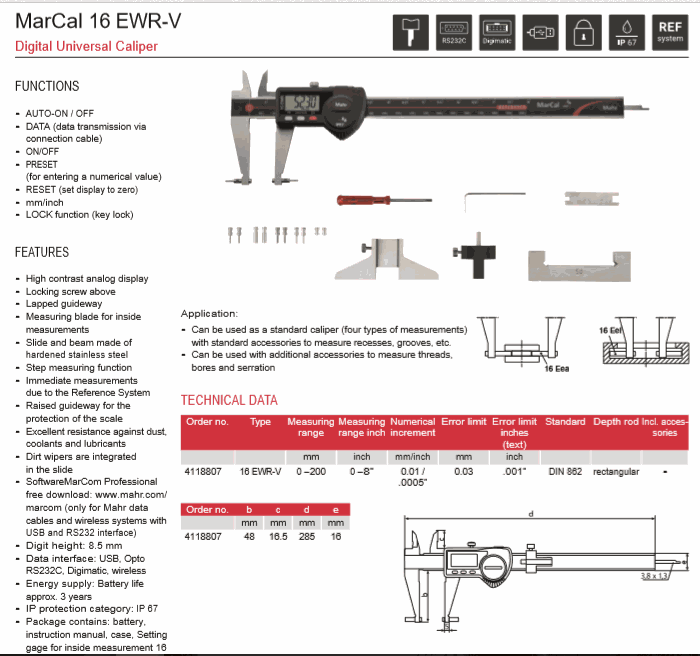

Mahr 4118807 Digital Universal Caliper (16 EWV, 0-200mm)

Type: 16 EWV

Measuring range mm: 0-200

Measuring range inch: 0-8

Numerical increment: 0.01mm/.0005”

Error limit mm: 0.03

Error limit inches: .001

Standard: DIN 862

Depth rod: rectangular

Accessories:

• Depth bridge (75x7mm), type 16 Em

• Anvil for outside measurement (3.5 x 12 mm), type 16 Eea 1

• Anvil for outside measurement (1.5 x 6 mm), type 16 Eea 2

• Anvil for outside measurement (3.5 x 6 mm), Type 16 Eea 3

• Anvil for inside measurement (3.5 x 6 mm), type 16 Eei 1

• Anvil for inside measurement (1.5 x 6 mm), type 16 Eei 2

• Anvil for inside measurement (3.5 x 6 mm), type 16 Eei 3

• Anvil for inside measurement (4 x 2.5 mm), type 16 Eei 4

• Setting gage for inside measurement (50 mm), type 16 Eel

• Measuring force device, type 16 Ec

• Screws M2x8

• Mounting attachment for thread anvils 844 TG/844Tr and ball anvils 844 Tk, type 16 Eab

• Receiver for instruments with integrated wireless, type i-Stick

• Battery 3 V, CR 2032
