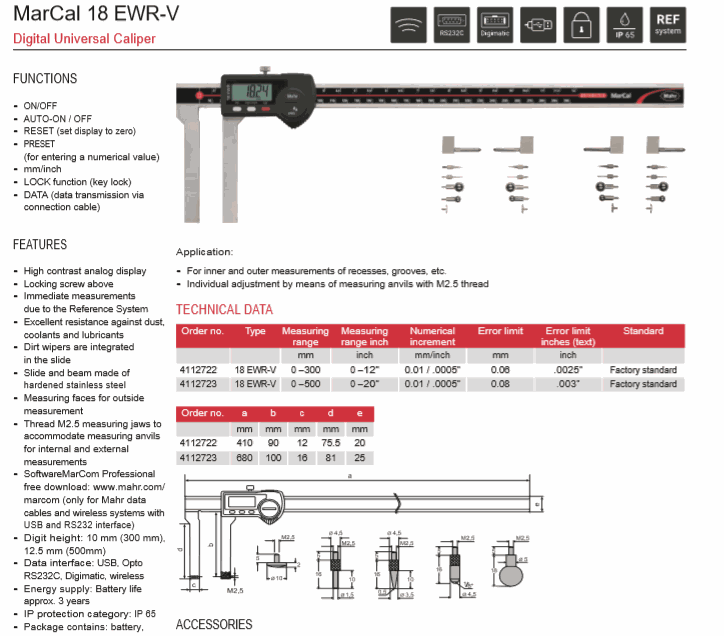

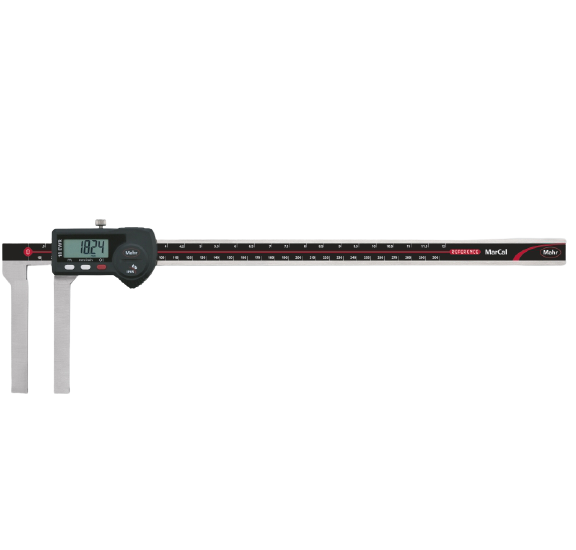

Mahr 4112722 Digital Universal Caliper (18 EWR-V, 0-300mm)

Type: 18 EWR-V

Measuring range mm: 0-300

Measuring range inch: 0-12

Numerical increment: 0.01mm/.0005”

Error limit mm: 0.06

Error limit inches: .0025

Standard: factory standard

Accessories:

• Receiver, type e-Stick

• Transmitter for e-Stick, type 16 EWe

• 16 EXu data connection cable USB (2 m), type 16 EXu

• Data connection cable RS232C (2 m), type 16 EXr

• Battery 3 V, CR 2032

• Digimatic data cable (2 m), type 16 EWd

• Replacement measuring anvil: Spherical plate Ø 10.0 mm

• Replacement measuring anvil: Cylindrical stylus Ø 1.5 mm x 10 mm

• Replacement measuring anvil: Tip, radius 0.5 mm x 10 mm

• Replacement measuring anvil: Sphere diameter 1/8” length 16 mm

• Replacement measuring anvil: Ball dia. 7.0 mm

• Replacement measuring anvil: Sphere Ø 10.0 mm
