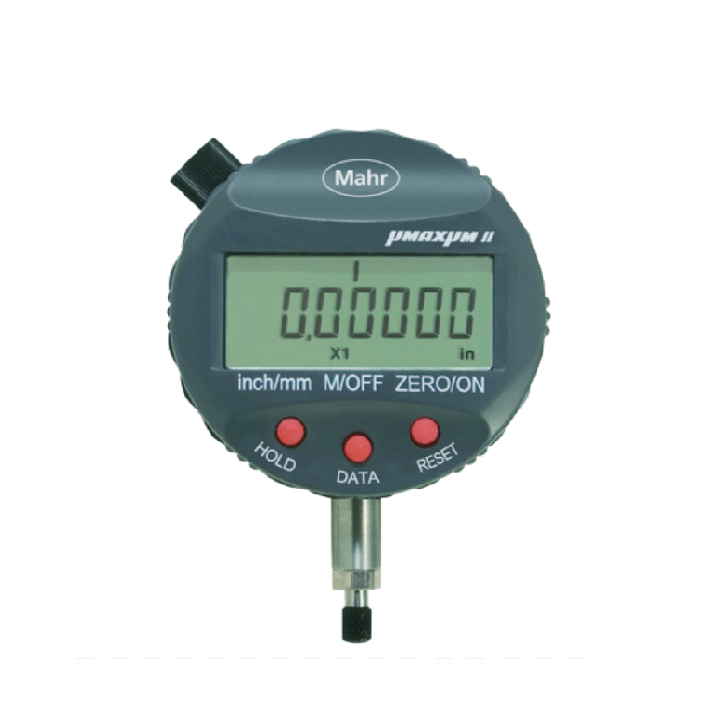

Mahr 2034105 Digital Dial Comparators (µMaxµm II, ±1 mm/±.040", IP54)

Measuring range: ±1mm/±.040"

Product type: µMaxµm II

Measuring range 1: -0.5 mm ~ 0.5 mm/ -0.02 inch ~ 0.02 inch

Standard: Factory standard

IP protection category: IP 54

Resolution: 0.0002 mm, 0.0005 mm, 0.001 mm, 0.002 mm, 0.005 mm, 0.01 mm, 0.02 mm

Battery type: CR 2450N (3V Lithium)

Resolution: 0.00001 inch, 0.00002 inch, 0.00005 inch, 0.0001 inch, 0.0002 inch, 0.0005 inch, 0.001 inch

Resolution: 1.0E-5 inch

Measuring force: 0.8 N ~ 1.1N

Height of digits: 8 mm

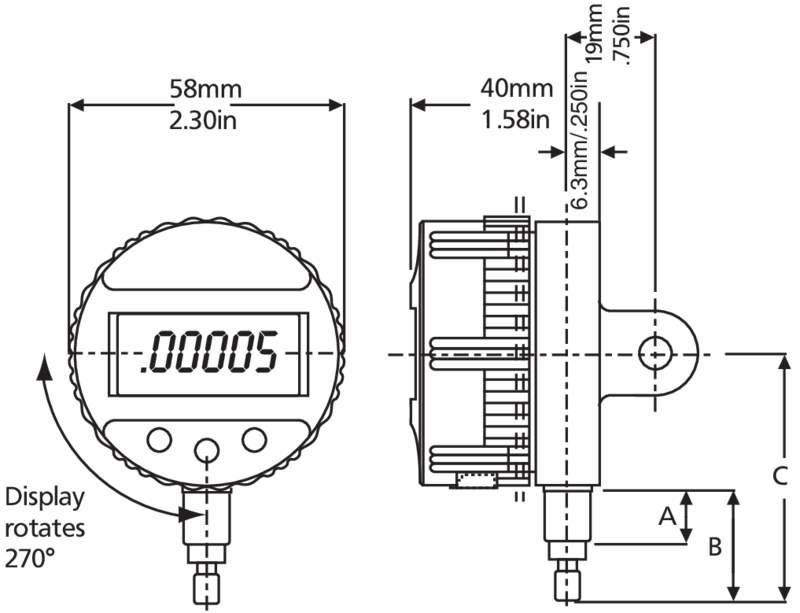

Dimensions: a 11.7 mm | b 24.1 mm | c 53.6 mm |

Manual
