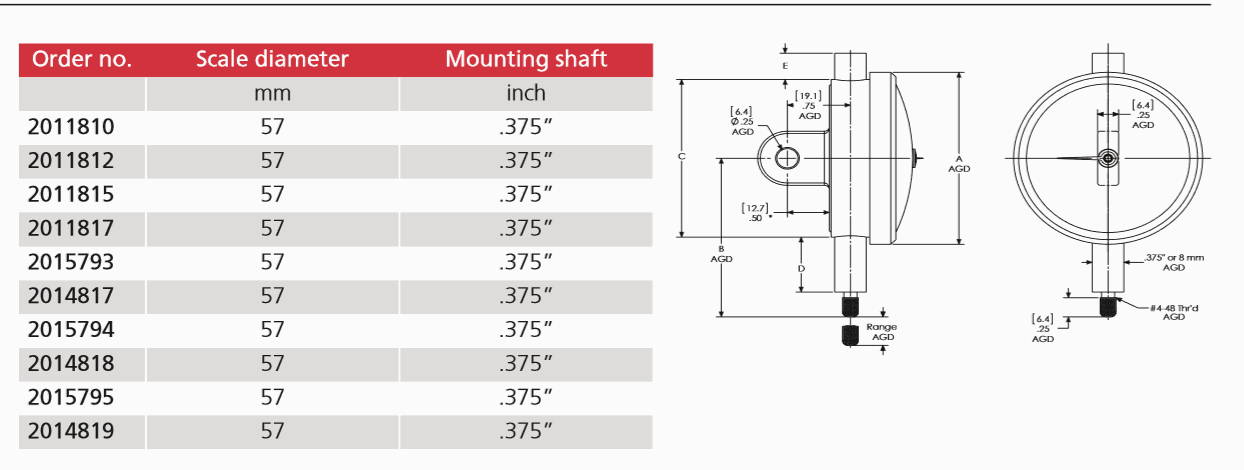

Mahr 2015793 Dial Indicator (23I, 1.25mm, 0.005mm)

Product type 23I

Measuring span: 1.25mm

Graduation value: 0.005mm

Type of dial face: 0-25-0

Rev. counter: -

Range per rev.: 0.5mm

Error limit: ± 0.005

Standard: ANSI

ANSI/AGD Group: 2

Dial color: yellow

FEATURES

• Unit construction and removable movement save repair/cleaning time and maintenance

• Hardened gears and stainless steel racks provide lasting  protection against indicator failure due to shock or wear

• Jeweled bearings resist friction, add to longer indicator life

• Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error

• Soft tinted dials (green - inch / yellow - metric) minimize eye strain

• Special steel alloy

• Balanced dial hand affords no shift, precise reading

• Controlled rack and pinion mesh eliminates slope for precise response and reading

• Smooth adjusting bezels for easy setup

• Positive pressure pull back spring requires less maintenance

• Compliance with ANSI/AGD dimensional and accuracy  specifications

• These indicators are normally furnished with continuous dial (with R.C.) or + on right balance dial (w/o R.C.), lug back and .18” by .250” long contact

• Optional dials: balanced dial with + on left; continuous clockwise; continuous counterclockwise (Order by part number and specify dial style desired)

• For other dial styles or special requirements - call Mahr
