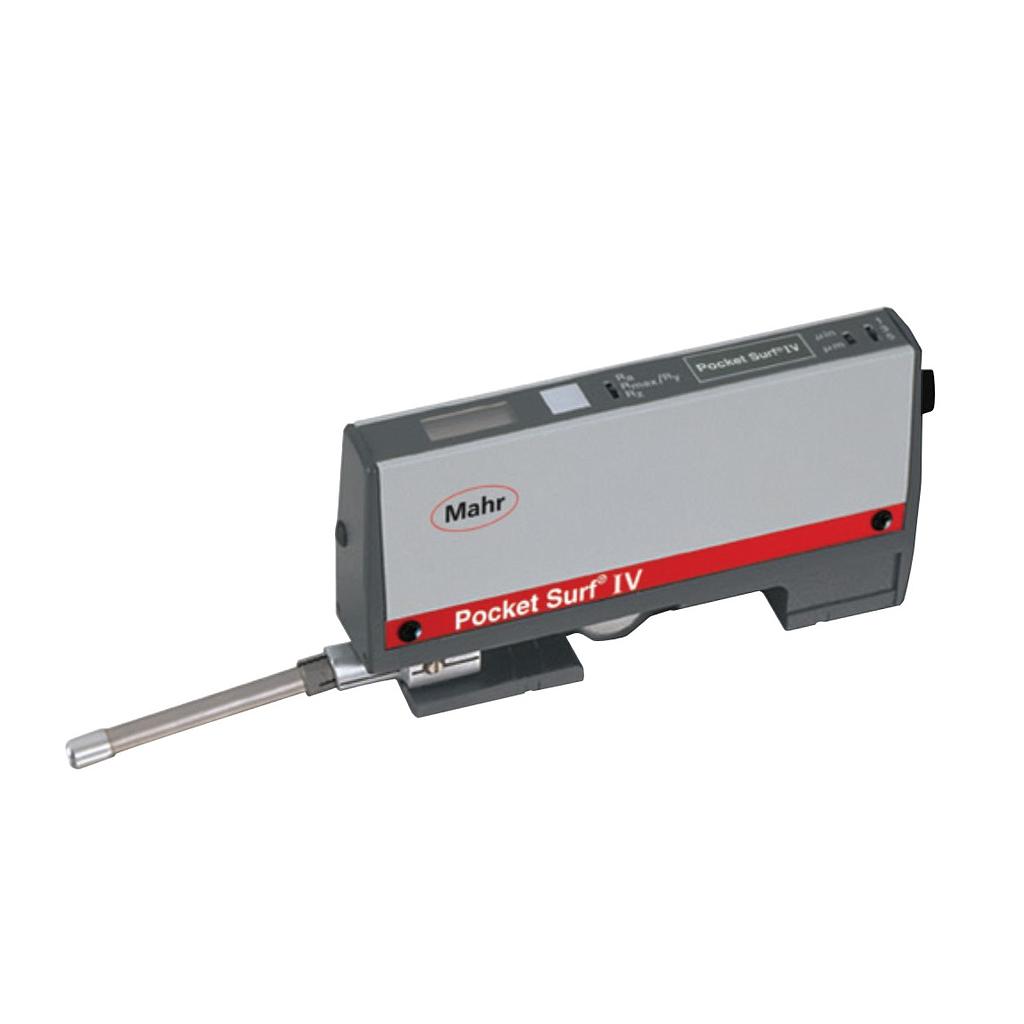

Mahr 2191800 Mobile Roughness Measuring Instrument (Pocket Surf IV, 10 µm)
ManufacturerMahr(View more products from this manufacturer)
Model2191800
OriginGermany
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Parameters: Ra, Ry, Rmax, Rz
Stylus: 10 µm /.0004”
Data interface: RS232C, USB
Rechargeable batteries: Battery, 9V
H x W x D (mm): 140 x 76 x 6.35
Weight (kg): 1.03
Measuring principle: Skid probe system
Probe: Piezoelectric skid probe
Measuring range (mm): Ra–6.35µm/250Ry,Rmax,Rz–25.3µm/999µin
Profile resolution: 0.01 µm / 1 µin
Number n of sampling length according to ISO/JIS: Selected: 1–5
Measuring force (N): 15 mN
