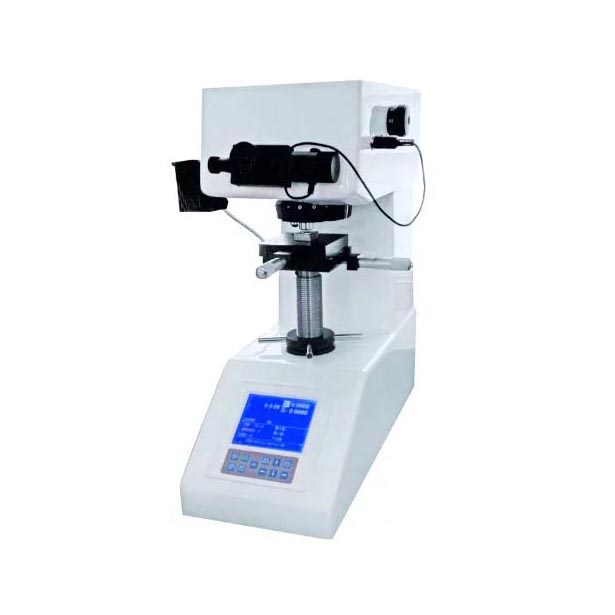

MAETALL HVS-1000 Vickers Hardness Tester (8 ~ 2900HV)

Test Force: 10gf (0.098N), 25gf (0.245N),50gf (0.49N),100gf (0.98N),200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N)

Min. Measurement Unit: 0.031µm

Scale Conversion: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N,HR15T, HR30T,HR45T

Hardness Range: 8 ~ 2900HV

Test Force Application Method: AUTO (Loading, Dwelling, Unloading)

Microscope Magnification: 100X (Observation) 400X (Measurement)

Test Force Dwelling Time: 0 ~ 60s

XY Test Bench: 100 * 100mm, Max. Moving Distance 25 * 25mm

Data Output: LCD Display, Built-in Printer and RS-232 Interface

Max. Height of Test Sample: 80mm

Distance from Indenter Center to Outer Wall: 95mm

Power Supply: AC220V+5%, 50-60Hz

Dimension: 405*290*480mm

Weight: 40Kg
