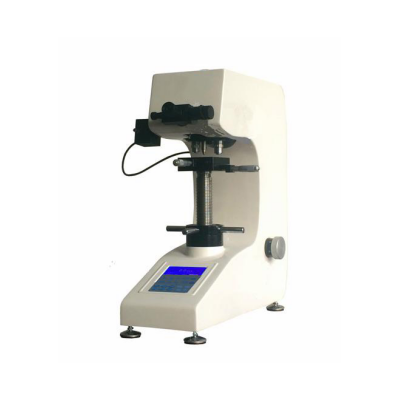

MAETALL HV-50 Vickers Hardness Tester

Test force

HV5B: 0.3Kgf, 0.5Kgf, 1Kgf, 2Kgf, 3Kgf, 5Kgf

HV10B: 0.3Kgf, 0.5Kgf, 1Kgf, 3Kgf, 5Kgf, 10Kgf

HV30B: 1Kgf, 3Kgf, 5Kgf, 10Kgf, 20Kgf, 30Kgf

HV50B: 1Kgf, 5Kgf, 10Kgf, 20Kgf, 30Kgf, 50Kgf

Exchanging Scales: Rockwell, Superficial Rockwell, Brinel

Min Measuring Unit: 0.5μm (Objective lens matching)

Magnification of Microscope: Obeserve100X, Measurement 200X

Measurement mode: Scale input

Loading Control: Automatically (load, keep, unload)

Net Weight: 40kg

Max Height of Specimen: Max. Height 165mm

Center to Wall 130 (HV30 and HV50 Optional 10X measurement)

Power Supply: AC220V±5%, 50~60Hz

Carried Standard: GB/T4340.2 (GB/T4340.2 Chinese Standard), JJG151 (JJG151 Inspection Rule)

Standard Accessories: Objective 20X, 10X, Vickers indenter, digital measuring eyepiece 10x, Big size flat test bench, middle size flat test bench, V test bench, hardness block (2), power cord
