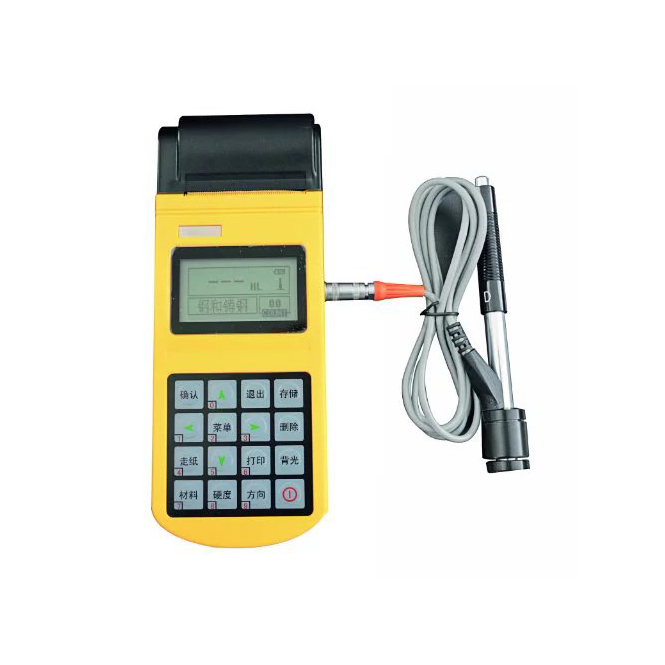

MAETALL HLN11A Leeb Hardness Tester (170 ~ 960HLD)

Hardness Types: HL, HB, HRB, HRC, HV, HS

Measurement Range: HLD (170 ~ 960) HLD

Direction of Measurement: 360°

Relative Error: ±0.8%

Repeatability error: 0.8 (HLD = 800) (indication error and repeatability tabulation)

Standard Impact Device: D-type Impact Device (Test Range Tabulation)

Radius of the Curvature of the Test Piece: Rmin=50mm (Rmin=10mm With Special-shaped Support Ring)

Max Hardness Value: 940HV (D/DC/DL/D+15/C Impact Device)

Optional Impact Device: D/C/DC/D+15/DL/G

Power Supply: Rechargeable Batteries NIMH4.8V,1200mAh

Dimension: 270×86×47mm

Weight: About 0.65kg (Host, Impact Device and Printer)
