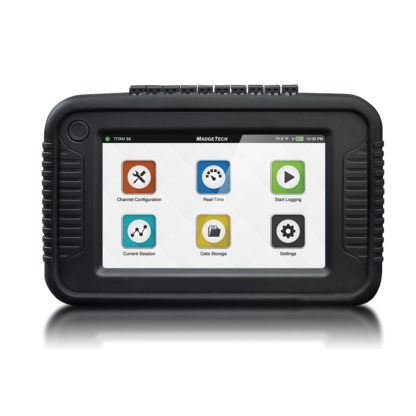

Madgetech TITAN S8 Portable Data Acquisition Logger (8 channel)

GENERAL

Dimensions: 6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x 35.8 mm) Data logger only

Touch Screen Dimensions: 5 inches

Number of Channels: 8 inputs and 1 alarm output

Weight: 1.3 lbs (20.8 oz)

IP Rating: IP20

Start Modes: Immediate Start & Delay Start

Memory: 1.8 GB, with session size of 1,000,000 or 5,000,000 readings

Battery Type: Rechargeable 3.7 V Lithium Ion Battery Pack

Battery Life: Continuous on-screen sampling: 7–9 hours depending on display setting and reading rate

Data Format: Exported .csv file format, .mtb or both

Time Accuracy: ±1 minute/month

Operating Environment: 0 °C to +50 °C (32 °F to +122 °F); 0 %RH to 95 %RH non-condensing

Enclosure Material: Polycarbonate, TPE Protective Boot

Calibration: Factory calibration is recommended annually

Alarm Output: 50 mA @ 100V, Solid State Relay Output
