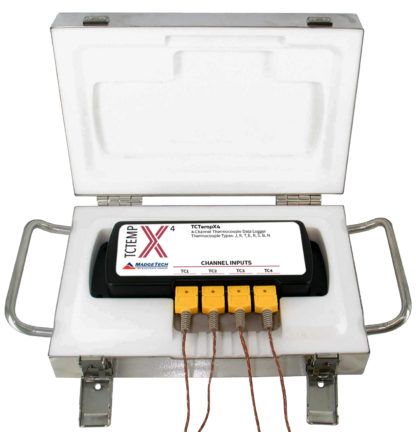

Madgetech ThermoVaultX4 Thermocouple Data Loggers (4-channel, -20 °C to +60 °C)

General

Memory: 4-Channel: 524,032 readings per channel

Reading Rate: 4 Hz up to 1 reading every 24 hours

Baud Rate: 460,800 baud

Cold Junction Compensation: Automatic

Channels: 4-Channel: 4 Internal & 4 Remote

Battery Life: 18 months typical

Dimensions:

- 9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm) [Enclosure case only. Excludes handles, brackets and latches]

- 12.3 in x 6.65 in x 2.45 in (312 mm x 168 mm x 62 mm) [Includes handles, brackets and front enclosure latches]

Operating Environment: See Data Sheet, 0 %RH to 95 %RH, non-condensing

Required Interface Package: USB-A to micro USB cable

Temperature

Temperature Range -20 °C to +60 °C (-4 °F to +140 °F)

Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)

Internal Channel Temperature Calibrated Accuracy: ±0.5 °C (0 °C to 50 °C)

Remote Channel Temperature Sensor: Thermocouple Types J, K, T, E, R, S, B ,N

Remote Channel Temperature Range: Thermocouple Dependent

Remote Channel Temperature Resolution: Thermocouple Dependent

Remote Channel Temperature Calibrated Accuracy: Thermocouple Dependent
