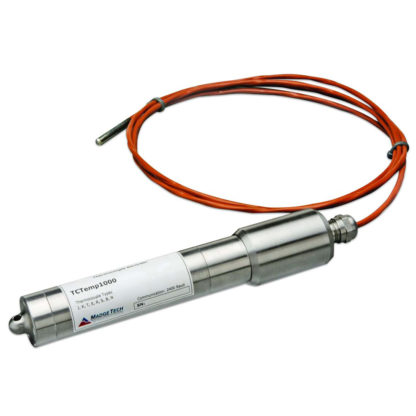

Madgetech TCTEMP1000 Rugged thermocouple-based temperature data logger (-40 ºC to +80 ºC)

General

Memory: 32,766 readings (all channels enabled)

Reading Rate: 1 reading every 2 seconds up to 1 reading every 12 hours

Baud Rate: 2400

Cold Junction Compensation: Automatic

Channels: 1 internal & 1 remote

Battery Life: 1 year

Material: 303 stainless steel

Dimensions: 7.4 in x 1.2 in dia (188 mm x 31 mm)

Submersible: Yes

Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH

Required Interface Package: IFC110 or IFC200

Temperature

Internal Channel Temperature Sensor: Semiconductor

Temperature Range: -40 ºC to +80 ºC (-40 ºF to +176 ºF)

Internal Channel Temperature Resolution: 0.1 °C (0.18 °F)

Internal Channel Temperature Calibrated Accuracy: ±0.5 °C

Remote Channel Temperature Sensor: Thermocouple Types J, K, T, E, R, S, B ,N

Remote Channel Temperature Range: Thermocouple Dependent

Remote Channel Temperature Resolution: Thermocouple Dependent

Remote Channel Temperature Calibrated Accuracy: Thermocouple Dependent
