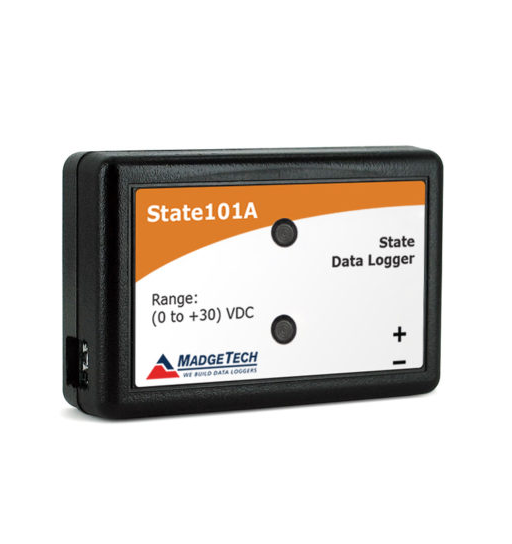

Madgetech State101A State Data Logger (0- 30 V)

General:

Memory: 465,578 readings

Reading Rate: 4 Hz to 1 every 24 hours

Baud Rate: 115200

Channels: 1

LED Indicators: Red and Green

Battery Life: 10 years typical, dependent upon frequency and duty cycle

Material: Polycarbonate

Dimensions: 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package: IFC200

Approvals: CE

State:

State Input Range: 0 to 30 V

State Input Low: <0.4 V

State Input High: >2.8 V

State Internal Weak Pull-up: <60 μA

State Input Impedance: 60000 Ω

State Resolution: 4 Hz (reading rate selectable in software)
