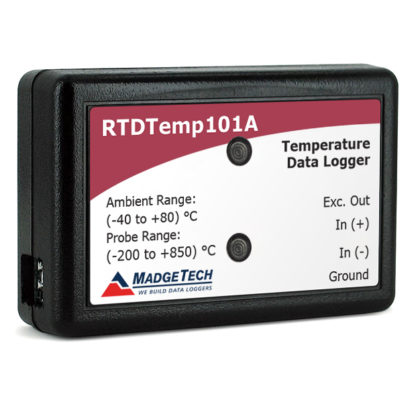

Madgetech RTDTemp101A RTD-Based Temperature Data Logger (-200 °C to +850 °C)

General

Memory: 1,396,736 readings

Reading Rate: 1 reading every second to 1 reading every 24 hours

Alarm: Yes

Baud Rate: 115200

Channels: 1

LED Indicators: Red & Green

Push-Button Start: Yes

Battery Life: 10 years typical at a 15 minute reading rate

Material: Polycarbonate

Dimensions: 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package: IFC200

Approvals: CE

Temperature

Temperature Sensor: External 100 Ω RTD (Sold Separately)

Temperature Range: 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent)

Temperature Resolution: 0.0001 Ω, 0.01 °C (0.018 °F) (Probe Dependent)

Temperature Calibrated Accuracy:

- ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)

- Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F)

- Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range
