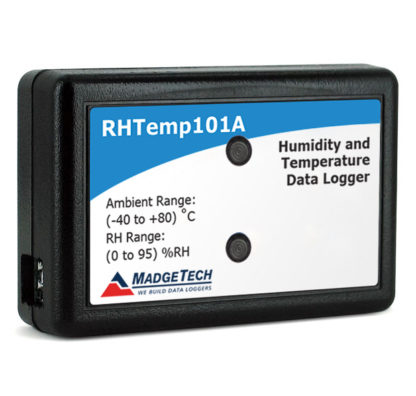

Madgetech RHTemp101A Humidity and Temperature Data Logger (-40 °C - +80 °C; 0-95 %RH)

General:

Memory: 1,047,552 readings

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Alarm: Yes, Humidity

Baud Rate: 115200

LED Indicators: Red & Green

Push-Button Start: Yes

Battery Life: 10 years typical at a 15 minute reading rate

Material: Polycarbonate

Dimensions: 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package: IFC200

Approvals: CE

Temperature:

Temperature Sensor: Precision RTD Element

Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)

Temperature Resolution: 0.01 °C (0.018 °F)

Temperature Calibrated Accuracy:

- ±0.5 °C (±0.9 °F) from 0 °C to 55 °C (+32 °F to +131 °F)

- ±1.0 °C (±1.8 °F) from -40 °C to 0 °C (-40 °F to +32 °F) and +55.01 °C to +80 °C (+131.01 °F to +176 °F)

Humidity:

Humidity Sensor: Internal semiconductor

Humidity Range: 0 %RH to 95 %RH

Humidity Resolution: 0.1 %RH

Humidity Calibrated Accuracy: ±3.0 %RH

Humidity Accuracy Range: 25 % RH to 75 % RH, 20 °C to 40 °C, Hysteresis Error 1 % Typ 3 % Max

RH Units: %RH, dew pt., water vapor, concentration (mg/hl)
