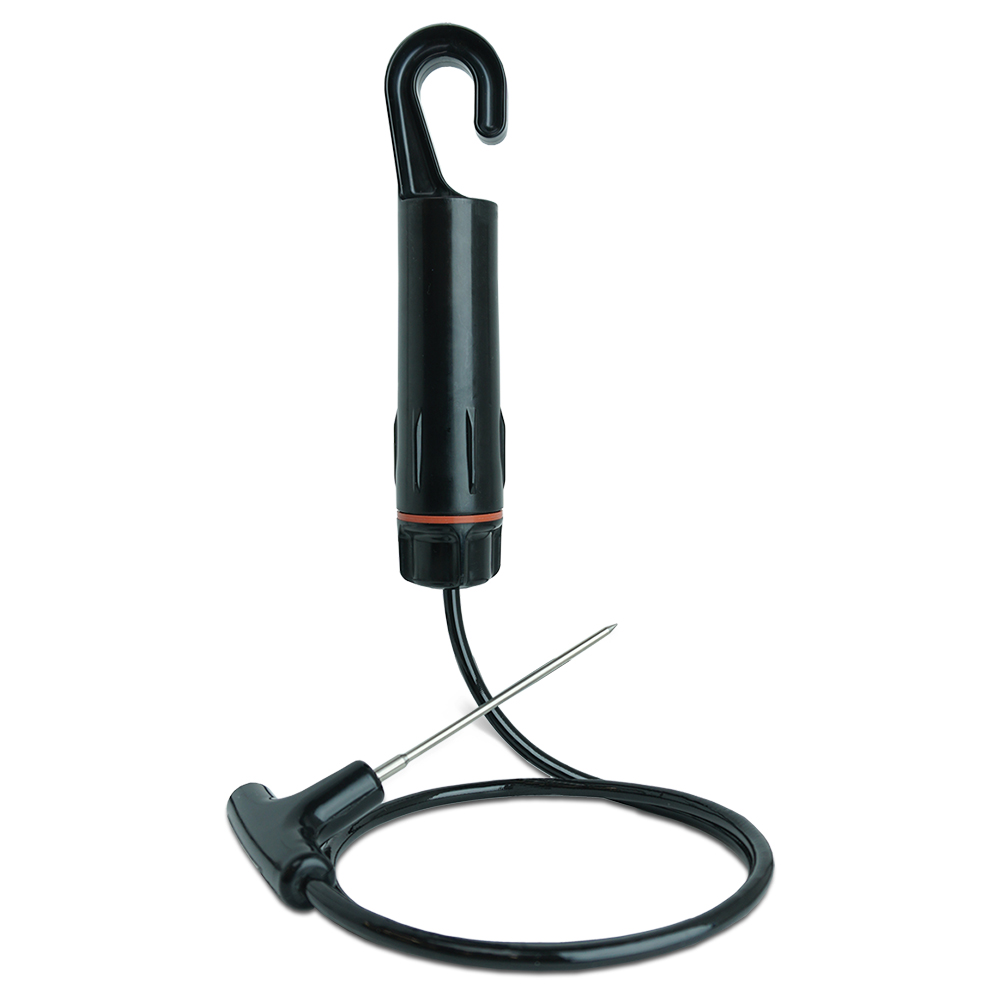

Madgetech RFOT-4 Wireless Meat Temperature Data Logger (-50 °C - 200 °C)

Temperature

Probe Temperature Range: -50 °C to +200 °C (-58 °F to +392 °F)

Resolution: 0.01 °C (0.018 °F)

Probe Calibrated Accuracy: ±0.1 °C (14 °F to 212 °F / -10 °C to +100 °C); ±0.5 °C (outside of that range)

Wireless

RF Carrier Frequency: 2.45 GHz IEEE 802.15.4 ultra-low power; MadgeNET wireless transceiver with fully bi-directional communication

Output Power: +0 dBm typical

Receiver Sensitivity: -95 dBm typical

Typical outdoors Line of sight: Up to 2000 ft

Typical Indoors line of sight: Up to 500 ft

General

Memory: 21,504 readings

Reading Rate: 1 reading every 2 seconds to 1 every 24 hours

Baud Rate: 115,200

Battery Life: 2 years typical

Material: Body: Radel R-5100; Cable Jacket: Silicone Polyurethane

Dimensions:

- Body: 7.9 in x 1.5 in dia. (200 mm x 39 mm dia.)

- Hook ID: 0.625 in (16 mm)

- Cable Length: 30 in (762 mm)

Probe Lengths:

- RFOT-4: 4.00 in (102 mm), Tip Diameter: 0.188 in; (4.8 mm), Tip Length: Full

IP Rating: Splash proof (IP67)

Operating Environment: -20 ºC to +100 ºC (-4 ºF to +212 ºF); 0 %RH to 100 %RH non-condensing

Required Interface Package: RFC1000

Approvals: CE, US (FCC), CA (IC)

Datasheet
