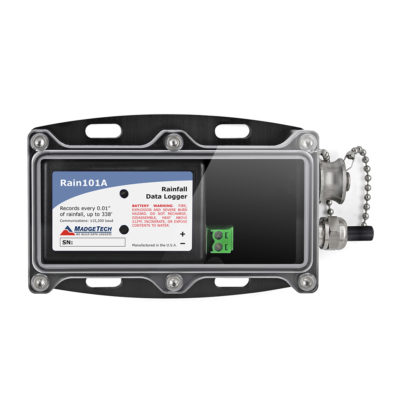

Madgetech Rain101A Rainfall Data Logging System

General:

Memory: 825,753 readings

Reading Rate: 4 Hz to 1 every 24 hours

Baud Rate: 115200

Push-Button Start: Yes

Battery Life: 10 years Typical

Material:

- Funnel: anodized aluminum; base, body and bracket

- Tipping Bucket: PVC

- Data Logger: ABS Plastic

Dimensions: Rain Gauge: 8.4" D x 15.0" H (213 mm x 381 mm); Weatherproof Enclosure: 3.5 in x 2.9 in x 1.1 in (87 mm x 73 mm x 27 mm)

Operating Environment: -20 °C to +80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH

Required Interface Package: IFC200

Rainfall:

Rainfall Accuracy: ±4 % over range of 1 in to 6 in per hour

Orfice: 8 in dia. (204 mm dia.)

Reed Switch Contact rating: 3 W, 28 VAC

Rainfall per Bucket Tip: (3) 1/4 in dia. holes on 9.5 in dia. circle
