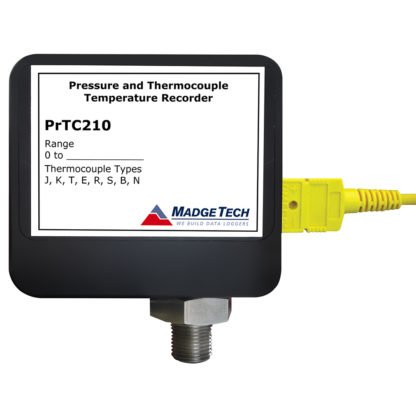

Madgetech PRTC210 Pressure and Temperature Data Logger (-20 ºC đến +80 ºC)

General:

Memory: 10,922 readings per channel

Reading Rate: 1 reading every 2 seconds to 1 reading every 12 hours

Baud Rate: 57600

Cold Junction Compensation: Automatic

LED Indicators: Red

Material: Delrin

Dimensions: 2.2 in x 2.5 in x 0.9 in (55 mm x 63 mm x 22 mm)

Operating Environment: -20 °C to +80 °C (-4 °F to + 176 °F), 0 %RH to 95 %RH non-condensing

Temperature:

Temperature Range: -20 ºC to +80 ºC (-4 ºF to +176 ºF)

Temperature Resolution: 0.1 ºC (0.18 ºF)

Calibrated Accuracy: ±0.5 ºC (±0.9 ºF)

Remote Channel Temperature Sensor: Thermocouple Types J, K, T, E, R, S, B, N

Remote Channel Temperature Range: Thermocouple Dependent

Remote Channel Temperature Resolution: Thermocouple Dependent

Remote Channel Temperature Calibrated Accuracy: Thermocouple Dependent

Pressure:

Pressure Sensor: Internal semiconductor

Pressure Range: 0 to 30, 100, 300, or 500 PSIA/G; 0 to 1000 or 5000 PSIA

Pressure Resolution: See Specifications Sheet

Pressure Calibrated Accuracy: 2 %FSR, 0.25 % at 25 °C (77 °F)
