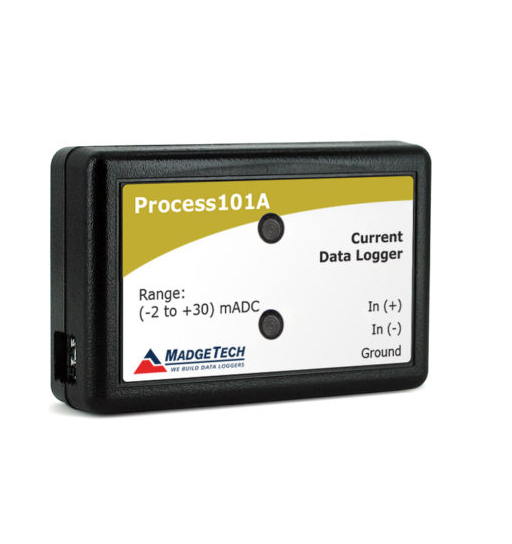

Madgetech Process101A-30mA Current Data Logger (-2 mA to +30 mA)

General:

Memory: 2,095,104 readings

Reading Rate: 4 Hz to 1 reading every 24 hours

Baud Rate: 115200

Channels: 1

LED Indicators: Red & Green

Battery Life: 10 year battery life typical, at a 15 minute reading rate

Material: Polycarbonate

Dimensions: 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)

Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package: IFC200

Approvals: CE

Current:

Measurement Range: -2 mA to +30 mA

Maximum Voltage Between Inputs to Ground: 0 V to 2.5 V

Resolution: 0.5 μA

Calibrated Accuracy: ±0.05 %FSR

Input Impedance: 10 Ω, ±1%

Absolute Maximum Current: 316 mA

Input Connection: Removable screw terminal

Analog Conversion Time: 133 ms nominal

Frequency Rejection: 50-60 Hz

Temperature Coefficient: < +/- 50ppm / ºC typical
