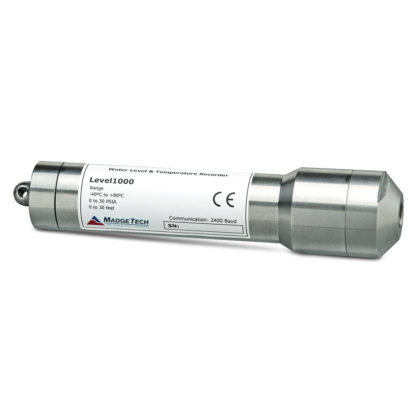

Madgetech Level1000 Water Level and Temperature Data Logger (-40 °C to 80 °C;0 to 30 ft)

General:

Memory: 32,766 readings (all channels enabled)

Reading Rate: 1 reading every 2 seconds up to 1 reading every 12 hours

Baud Rate: 2400

Battery Life: 1 year

Material: 303 Stainless Steel

Dimensions: 5.7 in x 1.25 in dia.(145 mm x 32 mm)

Submersible: Yes

Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH

Required Interface Package: IFC110 or IFC200

Approvals: CE

Temperature:

Temperature Sensor: Internal Semiconductor

Temperature Range: -40 °C to 80 °C (-40 °F to +176 °F)

Temperature Resolution: 0.1 °C (0.18 °F)

Temperature Calibrated Accuracy: ±0.5 °C

Water Level:

Pressure Sensor

Nominal Range: 0 to 30 ft

Level Resolution: 0.05 in

Level Calibrated Accuracy: ±8.3 inches of water (1.0 in typical at 25 °C (77 °F)

: Note: The Level1000 does not compensate for barometric pressure changes, therefore these changes are not included in the accuracy specifications.
