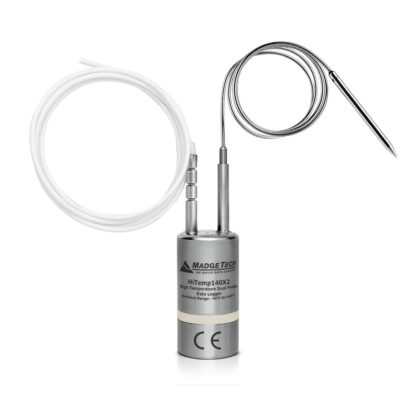

Madgetech HITEMP140X2-FPST-36 High Temperature Dual Probe Data Loggers (200 °C đến +260 °C)

General:

Memory: 16,128 readings

Reading Rate: 1 reading every 1 seconds up to 1 reading every 24 hours

Baud Rate: 125000

Battery Life: 2 years typical (1 minute reading rate); User Replaceable Battery

Material:

- Body: 316 Stainless Steel, Radel

- Rigid/Bendable Probe: 316 Stainless Steel

- Flexible Probe: PFA Insulated Cable with Stainless Steel Tip

Dimensions (Body): 1.89 in x 0.97 in x 0.97 in (48 mm x 24.6 mm x 24.6 mm)

Dimensions (Probes): Two Flexible RTD Probes 36 in x 0.13 in (914.4 mm x 3.2 mm

Key Ring End Cap: Key ring replaces standard bottom; Thru-hole: 0.150"

IP Rating: IP68

Submersible: Yes

Operating Environment: -40 °C to +140 °C (-40 °F to +284 °F), 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)

Temperature:

Temperature Sensor: Two Flexible RTD Probes

Temperature Resolution: 0.01 °C (0.018 °F)

Temperature Calibrated Accuracy: ±0.1 °C (0.18 °F)

Probe Temperature Range: -200 °C to +260 °C (-328 °F to +500 °F)
