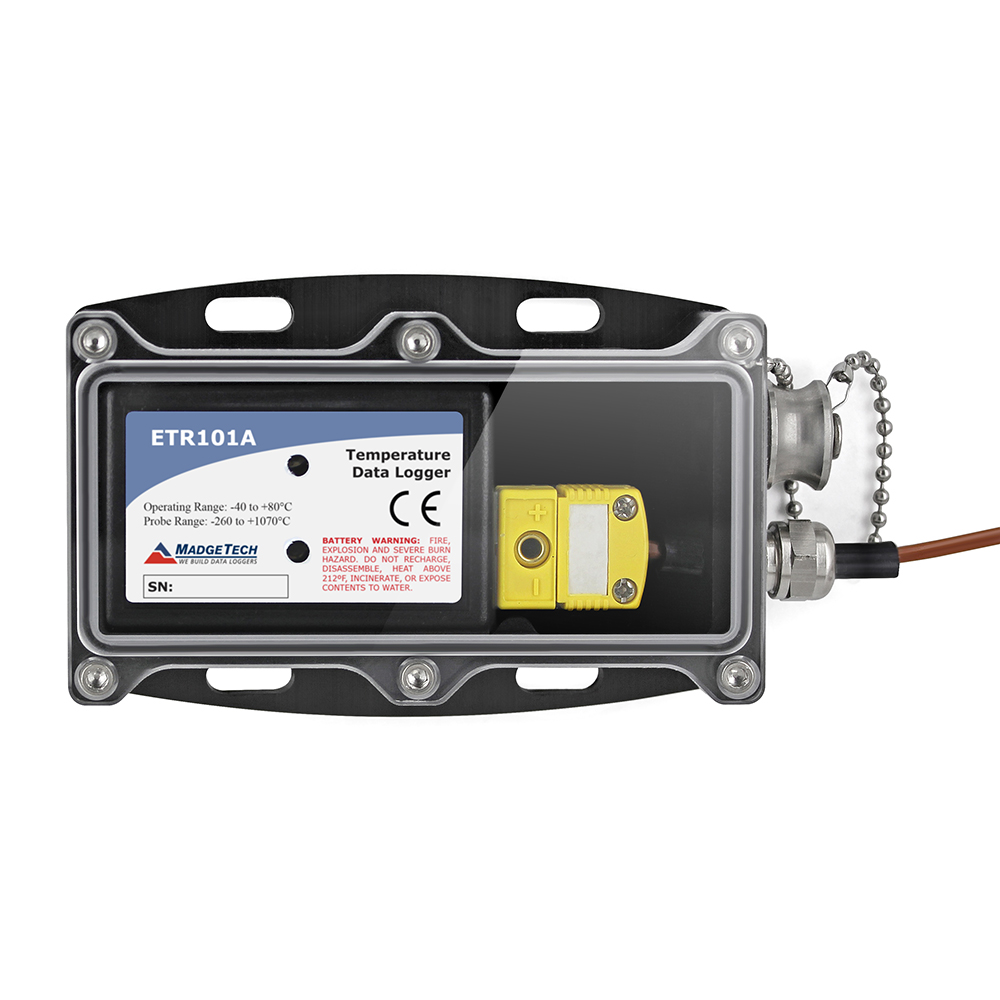

Madgetech ETR101A Data logging system for exhaust temperature profiling. (-40 °C to +80 °C)

General

Memory: 1,032,192 readings (all channels enabled)

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Baud Rate: 115200

Cold Junction Compensation: Automatic

Channels: 1 Internal & 1 Remote

LED Indicators: Red and Green

Push-Button Start: Yes

Battery Life: 10 years typical, dependent upon frequency and duty cycle

Material: ABS plastic

Dimensions: 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm)

Operating Environment: -20 °C to 80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH

Required Interface Package: IFC200

Temperature

Temperature Sensor: Semiconductor

Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)

Temperature Resolution: 0.1 °C (0.18 °F)

Temperature Calibrated Accuracy: ±0.25 °C (±0.45 °F)

Remote Channel Temperature Sensor: Thermocouple Type K

Remote Channel Temperature Range: -260 °C to +899 °C (-436 °F to +1650.2 °F)

Remote Channel Temperature Resolution: 0.1 °C (0.18 °F)

Remote Channel Temperature Calibrated Accuracy: ±0.5 °C

Datasheet
