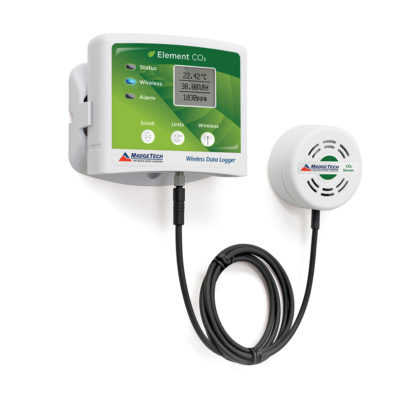

Madgetech Element CO2 Wireless CO2, Humidity and Temperature Data Logger (0 °C to +55 °C)

General:

Memory: 10,752 readings (all channels enabled)

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Baud Rate: 250000

LED Indicators: Green, Blue & Red

Battery Life: 16 months typical at a 10 minute reading rate

Material: ABS plastic

Dimensions: Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in)

IP Rating: IP22

Operating Environment: 0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH non-condensing, 13.77 PSIA to 100 PSIA

Required Interface Package: RFC1000

Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature:

Internal Channel Temperature Sensor: Silicon

Internal Channel Temperature Range: 0 °C to +55 °C (+32 °F to +131 °F)

Internal Channel Temperature Resolution: 0.08 °C (0.144 °F)

Internal Channel Temperature Calibrated Accuracy: ±1.0 °C

Humidity:

Humidity Sensor: Silicon

Humidity Range: 0 %RH to 95 %RH

Humidity Resolution: 0.08 %RH

Humidity Calibrated Accuracy: ±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise

Carbon Dioxide:

Carbon Dioxide Range: 0 ppm to 200,000 ppm

Carbon Dioxide Resolution: 10 ppm

Carbon Dioxide Accuracy: 70 ppm ± 5% of the reading

Wireless:

RF Baud Rate: 250000

Output Power: +0 dBm typical

Receiver Sensitivity: -95 dBm typical

Typical outdoors Line of sight: Up to 2000 ft

Typical Indoors line of sight: Up to 500 ft
