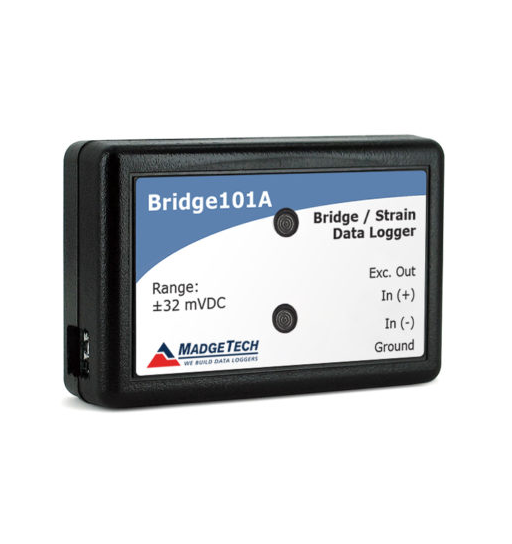

Madgetech Bridge101A-1200 Bridge/Strain Gauge Data Logger (±1200 mv)

General:

Memory: 2,095,104 readings

Reading Rate: 4 Hz to 1 every 24 hours

Baud Rate: 115200

Battery Life: 10 months typical at a 1 minute reading rate with a 350 Ω load; 2 years typical at a 1 minute reading rate with a 1000 Ω load

Material: ABS Plastic

Dimensions: 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm)

Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 90 %RH non-condensing

Required Interface Package: IFC200

Bridge:

Bridge Range: ±1200 mv

Bridge Resolution: 50 μV

Bridge Accuracy: ±240 μV

Datasheet
