MACOM MAAM-011109 General Purpose Amplifiers .1-40GHz Gain 12dB Return Loss 15dB

Gain: 13 dB

Technology: Si

Isolation dB: 22 dB

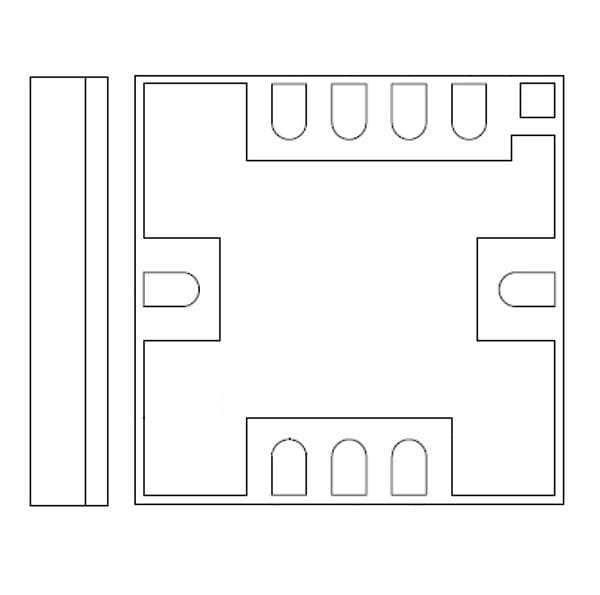

Mounting Style: SMD/SMT

Test Frequency: 100 MHz to 40 GHz

Input Return Loss: 13 dB

NF - Noise Figure: 3.5 dB

Moisture Sensitive: Yes

Operating Frequency: 10 MHz to 40 GHz

Operating Supply Current: 190 mA

Operating Supply Voltage: 5 V

P1dB - Compression Point: 13 dBm

OIP3 - Third Order Intercept: 16 dBm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
