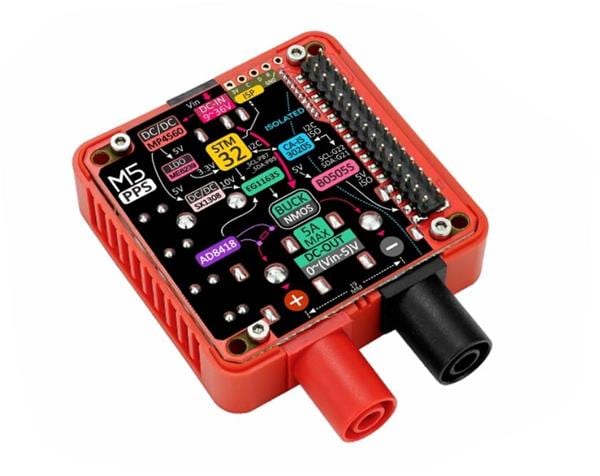

M5Stack M137 AC/DC Output Modules PPS Module 13.2 is a programmable power supply module employs STEP-DOWN

Width: 54 mm

Height: 19.7 mm

Length: 68.5 mm

Industry: Industrial

Dimensions: 68.5 mm x 54 mm x 19.7 mm

Output Power: 100 W

Input Voltage: 9 VDC to 36 VDC

Mounting Style: PCB

Load Regulation: Not Regulated

Number of Outputs: 2 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 500 mA

Output Current-Channel 2: 5 A

Output Voltage-Channel 1: 30 V

Output Voltage-Channel 2: 0 V

Operating Temperature Range: 0 C to + 40 C

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: 0 C
