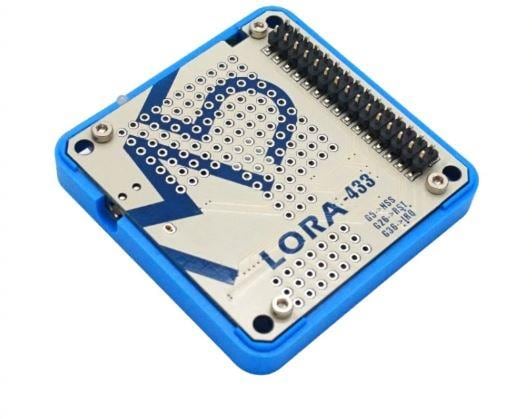

M5Stack M005 LoRa Modules LoRa (433MHz) is a LoRa communication module in the M5Stack stack module series.
ManufacturerM5Stack(View more products from this manufacturer)
ModelM005
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 433 MHz
Dimensions: 54.2 mm x 54.2 mm x 12.8 mm
Unit Weight: 24 g
Output Power: 18 dBm
Interface Type: SPI
Protocol - Sub GHz: LoRa/LoRaWAN
Supply Voltage - Max: 3.7 V
Supply Voltage - Min: 2.5 V
Antenna Connector Type: Built-in
Supply Current Receiving: 12.15 mA
Supply Current Transmitting: 93 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
